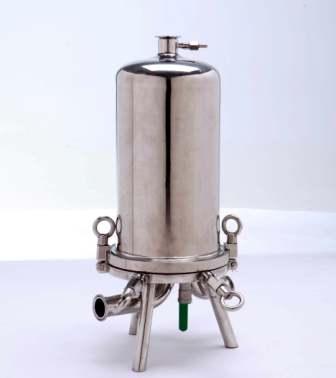

Contact SupplierWe offer stainless steel Liquid Filter Housing.
◆ Meet the GMP requirements
Electropolished, Smooth and Round corner design, no dead space
◆ Complete stainless steel structure
Made of 100% SUS304 or SUS316L
Wide chemical compatiblity
Can be used in acid and alkaline solvents
◆ Easy to install design
Wide range of connections sizes and types,
cartridge length for choice.
◆ Typical Applications
All kinds of liquid filtration system
◆ Operating Conditions
Designed pressure: 7.2bar (104psi) within 30 mins.
Max.operating pressure: 6.0 bar(87psi)
Cartridges Closure Dimensions(mm)
Nos. Length d D B H1 H
1 5" Ferrule
clamp Φ25 102 180 120 570
10" 690
20" 940
30" 1190
3 10" Stud
bolts Φ32 184 240 180 720
20" 980
30" 1210
5 10" Stud
bolts Φ38 219 280 200 130
20" 990
30" 1220
40" 1460
7 20" Stud
bolts Φ45 273 420 210 1060
30" 1290
40" 1530
9 20" Stud
bolts Φ51 325 460 210 1080
30" 1310
40" 1550
12 20" Stud
bolts Φ57 350 480 240 1150
30" 1380
40" 1620
18 20" Stud
bolts Φ76 400 500 260 1160
30" 1390
40" 1630
21 20" Stud
bolts Φ89 450 600 280 1190
30" 1420
40" 1660
