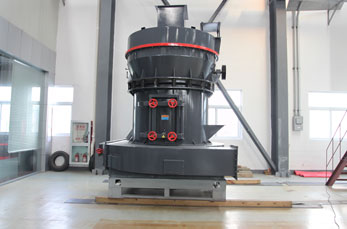

Contact SupplierMTM Medium Speed Trapezium grinder is a kind of leading-world-level industrial milling machinery. It is designed by our own engineers and technical workers, basing on industrial mill research of many years and adopting world-leading-powder processing technology. Now a number of customers are fond of it for its incomparable features.
Â
Pretreatment: Using the hydraulic hammer to crush the big stone into smaller one, and arrange the worker to cut through the long reinforcement to prevent damaging the belt conveyor.
Name | MTM100 | MTM130 | MTM160 | |
Ring roll number(pcs) | 4 | 5 | 6 | |
Major diameter of roller(mm) | Φ310X170 | Φ410X210 | Φ480X270 | |
Inner diameter of roller(mm) | Φ950X170 | Φ1280X210 | Φ1600X270 | |
Revolving Speed(rmin) | 130 | 103 | 82 | |
Max feed size(mm) | <25 | <30 | <35 | |
Final size(mm) | 1.6-0.045 fineness can reach to 0.038 |
1.6-0.045 fineness can reach to 0.038 |
1.6-0.045 fineness can reach to 0.038 |
|
Output(th) | 3-8 | 6-11 | 9-22 | |
Main unit motor | Power(kw) | 37 | 75 | 132 |
Centrifugal induced draft fan motor | Power(kw) | 37 | 75 | 132 |
Classifier speed regulating motor | Power(kw) | 5.5 | 7.5 | 18.5 |
Elevator | Elevator model | TH210 | TH210 | TH315 |
Power(kw) | 3 | 3 | 4 | |
Jaw Crusher | Jaw Crusher Model | PE200×350 | PE250×400 | PE250×750 |
Power(kw) | 7.5 | 15 | 22 | |
Magnetic vibrating feeder | Main unit motor | GZ2F | GZ3F | GZ3F |
Power(kw) | 0.15 | 0.2 | 0.2 |
