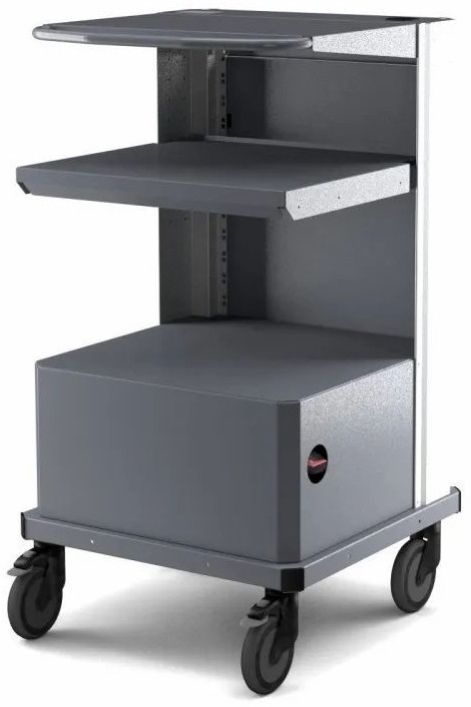

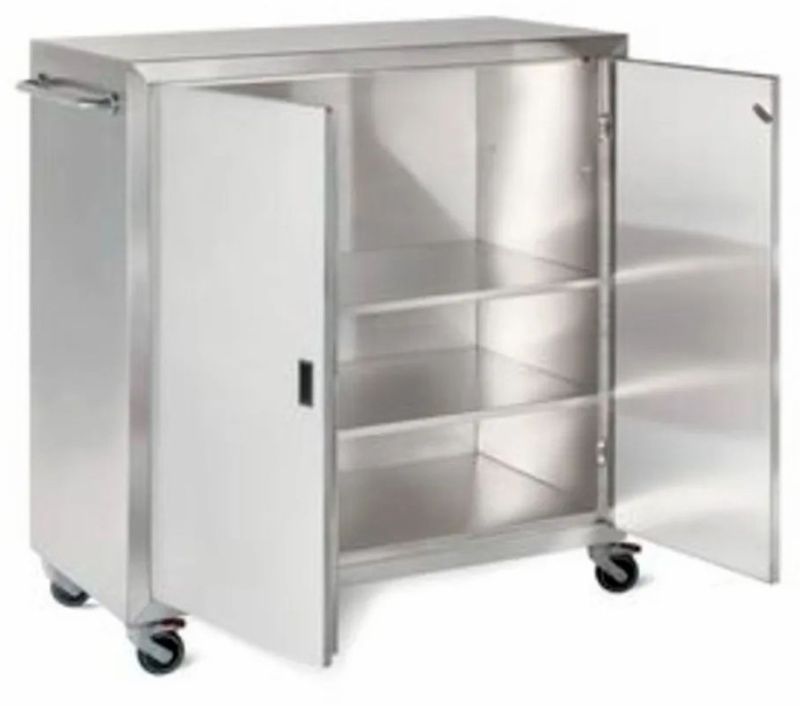

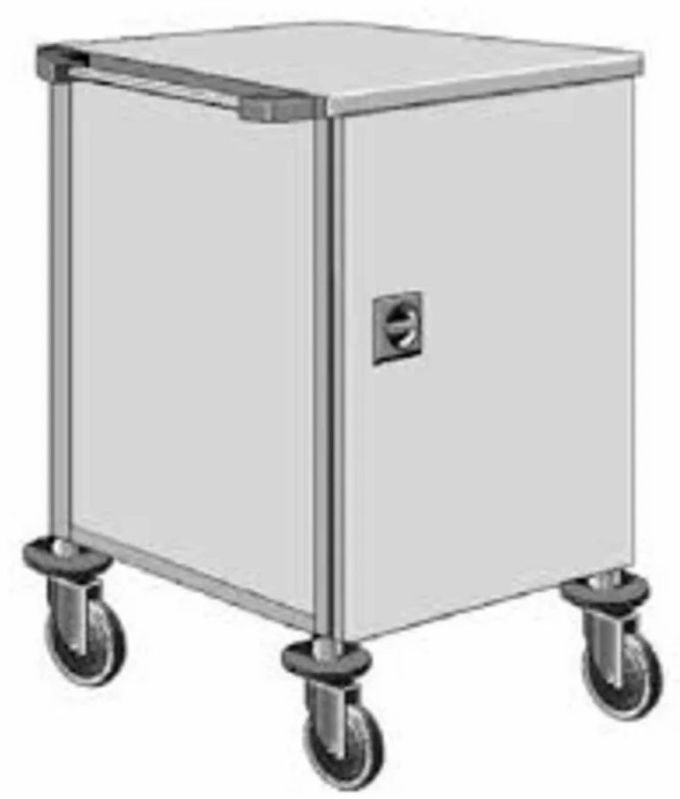

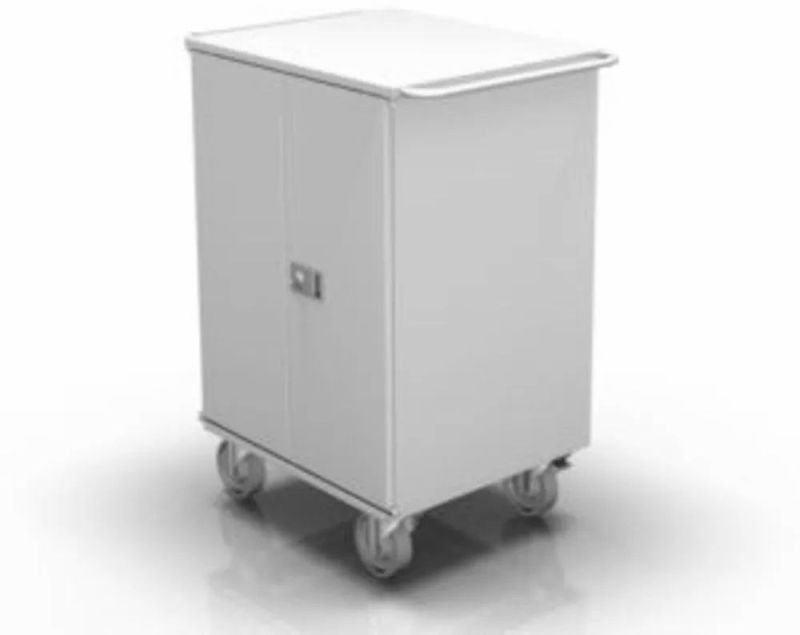

Chemietron Stainless Steel Mobile Trolley

Chemietron” designed for Mobile Trolley transferring sterile products under ISO Class 5 (Class 100) particle free work area. The work area is continuously supplied with positive pressure HEPA filtered recirculated/once through horizontal / vertical air flow.

Technical Specifications:

• Air cleanliness: ISO Class 5 / Class 100 / M 3.5 AREA
• Air Velocities: 0.45 ± 0.05 mps (90 ± 20 FPM)
• Air Flow: Horizontal / Vertical
• Noise Level: Less than 65 dB
• Vibration Level: Minimum
• Power Supply: 230 V AC, 1-Ø, 50 Hz
• MOC: GI Powder Coated / SS-304 / SS-316 / Combination
• Two Stage filtration: EU7 - Intermediate Filter (95% down to 3 micron) & EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
• Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
• Fluorescent Lights
• UV Light
• Differential Pressure Gauges: 01 No. (HEPA Filter)
• Battery back-up with Inverter (for 30 mic. to Three hour)
• SS Castor wheel with PU Coated (with locking arrangement)
• ON/OFF Switches (BL / FL / UV)
• DOP Port: DQ, IQ, OQ, PQ Documentation

Other details:

• Once through / Re-circulating operation
• Side wall with SS / Flexible PVC Strip / Poly carbonate / Acrylic Sheet)
• Velocity display with High / Low Alarms
• Filter chocking alarms
• Auxiliary Powder Socket: 5/15 Amp for external equipment
• FLP Electrical Goods for Explosion
• Custom design available for sterilized drum transfer
