Stainless Steel Pipe Making Machine, Power : 7.5kw

We are offering stainless steel pipe making machine.
High speed automatic round square pipe making machine and tube making machine
detailed product description

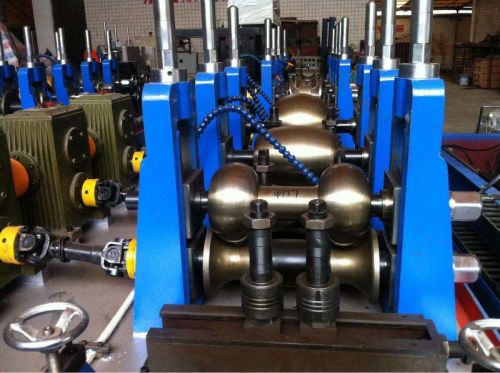

1. Stainless steel tube mill
2.iso9001
3.various specifications for your choose
4.precise, high quality, best price
1. Name:
automatic stainless steel pipe welding machine, stainless steel pipe making machie, industrial tube machine, tube mill.
2. Application:
mainly used for the production of decorative pipe , furniture
3.as the mature technology of stainless steel welded pipe, seamless pipe has been replaced in many areas, such as chemical, pharmaceutical, brewery, oil, food, automtibe, paper and air conditioning industry.
4. Automated production process:
the open book, cleaning equipment, feed direction, forming, welding, weld the entire inner peace, outer weld grinding, shapping sizing, solution treatment, the final sizing, straightening, testing, marking, set feet, cut off (coil), unloading frame.
5. Machinery main components:
the uncoiler machine, forming welding machine, grinding machine, two sizing units, frame straightening, cutting machine, finished frame.
6.technical parameter:
model horizontal axles(mm) vertical axles(mm） diameter range(mm) thickness(mm） main motor power size of machine(l*w)(m)
zp-30 30 25 ¢6-¢25 0.2-0.8 4kw 19.5*1.0
zp-s40 40 25 ¢6-¢32 0.2-1.0 5.5kw 20*1.0
zp-40 40 25 ¢9-¢51 0.2-1.5 7.5kw 21.5*1.1
zp-l40 40 25 ¢12-¢64 0.3-2.0 11kw 21.5*1.1
zp-50 50 30 ¢25-¢76 0.3-2.0 11kw 24*1.2
zp-60 60 40 ¢38-¢114 0.4-2.5 15kw 26*1.4
zp-80 80 50 ¢76-¢168 1.0-3.5 18.5kw 32*2.3
zp-100 100 60 ¢114-¢219 1.0-4.0 22kw 23*1.2
main components of the production: uncoiler、forming and welding unit、grinding unit、sizing unit、straightening racks、cut off machine、end- product shelf
