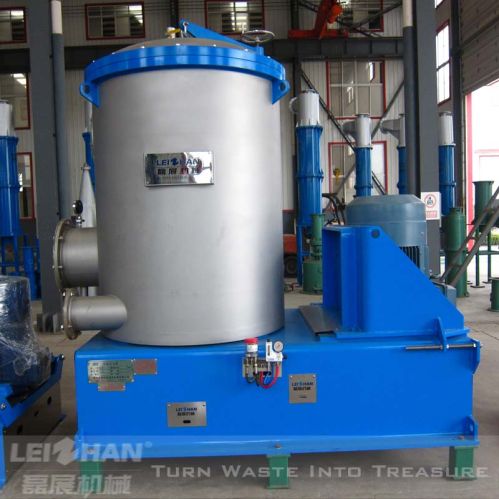

Stainless Steel Pressure Screen, Packaging Type : Blue

We are offering iso&bv certification stainless steel pressure screen.
Product description
specification
1.with many rotor blades
2.high frequency pulse
2.bv&iso certificate
3.energy saving pulp screen
application
energy saving pressure screen of paper recycling machine is a kind of advanced paper pulp screening equipment and a new type of paper pulp screening equipment in waste paper recycling machine line.
Which has installed with the rotating drum rotor ,high-frequency pulse not easy to plug, can be used to screen such as waste paper and washed pulp,wood pulp,and also can be used as thermal screening equipment for after cooking before washing pulp in paper recycling and paper pulp making industry.
feature
paper pulp in energy saving pressure screen of paper recycling machine is modern slurry-making process of new technology, which can save a lot of water,reduce power consumption, reduce heat loss, and waste water emissions, simplified slurry-making process flow.the equipment with high efficiency, cover less area , light weight and safe operation, easy maintenance in paper pulping system for pulp screening.
main specification
screen area(m²) 0.3 0.6 0.9 1.2 1.5 2 3 4
screen hole size(mm) φ1.6-φ3.5
screen seam size(mm) 0.10-0.55
production capacity( td) 50-80 90-160 135-250 180-320 200-380 260-500 400-700 500-1000
30-50 60-100 90-150 120-190 140-230 200-300 300-450 350-730
inlet pulp consistency(%) 1.5-4
motor power(kw) 22-55 30-75 37-90 45-110 55-132 75-160 90-220 132-280
