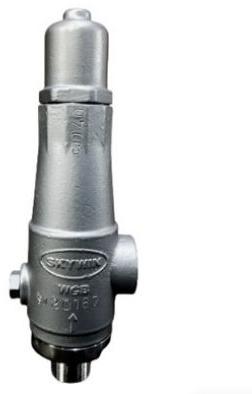

SVT 22 Safety Relief Valve, For Industrial, Certification : ISI Certified

₹ 5,870 - ₹ 7,500 / Piece

MaterialStainless Steel
CertificationISI Certified
Packaging TypeRed
UsageIndustrial
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location India, United Arab Emirates, South Africa, Central African Republic

Company Information

Kathwada, Ahmedabad, Gujarat

4.6/5

View Number

Ask for more detail from the seller

Report incorrect details

DESIGN FEATURES

Replaceable all parts & easy maintenance.
Seat has metal & soft seating arrangement.
Pressure limits as per your requirements.
Hard face for high pressure & high temperature
Material of construction make in well quality investment casting
Spring gives high quality, well design & well performance
Trims make by certified bar stock.(Forged trims also available as per requirement)..

TECHNICAL FEATURES

Download Detail File : Click Here

Valve Size Inlet x Outlet	A ±3.0	B ±3.0	C ±3.0	(Approx) Weight (kg)
15(F) x 25(F)	46	46	245	5
20(F) x 25(F)	46	64	245	5
25(F) x 25(F)	46	64	245	5
40(F) x 50(F)	67	87	312	8
50(F) x 50(F)	67	87	312	8
15(M) x 25(F)	46	92	273	6
20(M) x 25(F)	46	92	273	6
25(M) x 25(F)	46	92	273	6
40(M) x 50(F)	67	92	318	8.5
50(M) x 50(F)	67	92	318	8.5

No.	Part Name	Type of Material
1	Body	ASTM A 216 GR. WCB, ASTM A 351 GR. CF8/CF8M/CF3/CF3M
2	Cap	ASTM A 216 GR. WCB, ASTM A 351 GR. CF8/CF8M/CF3/CF3M
3	Nozzle	SS410/304/304L/316/316L
4	Nozzle Ring	ASTM A 216 GR. WCB, ASTM A 351 GR. CF8/CF8M/CF3/CF3M
5	Disc	SS410/304/304L/316/316
6	Stem	SS 410/304/304L/316/316L
7	Lock Screw	SS 410/304/304L/316/316L
8	Adjusting Screw	SS 410/304/304L/316/316L
9	Adjusting Screw Nut	SS 410/304/304L/316/316L
10	Lock Screw	SS 410/304/304L/316/316L
11	Setting Spring	SP. Steel/CS/SS/Alloy Steel
12	Gasket (Lock Screw)	CAF/GRAPHITE/PTFE
13	Gasket (Nozzle)	CAF/GRAPHITE/PTFE
