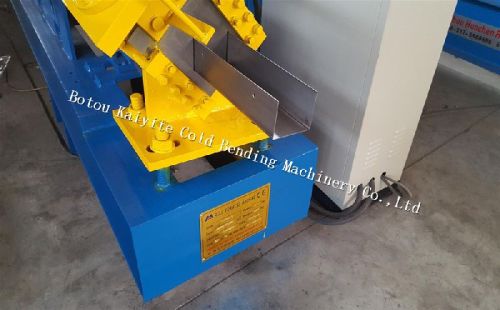

Stainless Steel U Channel Roll Forming Machine

Stainless Steel U Channel Roll Forming Machine We have stronger after sale service team and can provide the technical support for our metal sheet adjustable Stainless Steel U Channel Roll Forming Machine .If you need us to debug abroad , we can arrange our technicians to your place . 24 hours on line for your requirement . Working Flow Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand                              Technical parameters: * Material thickness: 1.5 - 3 mm                           * Voltage : 380V3PH50HZ * Main Motor : 7.5 KW                                       * Hydraulic Motor : 5.5 KW * Hydraulic Pressure : 10-12MPa                         * Flattening rollers : 7 rollers * Main forming station : 13 steps                           * Forming Shaft : diameter 85 mm, 45# steel thermal refining * Roller Material : GCR15 bearing steel quenching HRC58-60°
