Stainless Steel Valves, Flanged Valves, Butt Welding Ends Valves

We offer stainless steel valves, flanged valves, butt welding ends valves, wafer control valves.

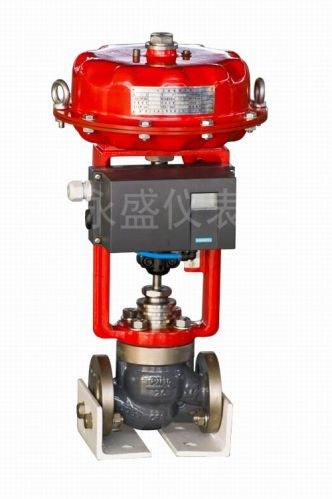

Ysiq10 series of intelligent regulating valve
1) ysiq10 series of intelligent regulating valve uses modular design with strong compatibility and interchangeability, impact structure and wide variety. The varieties of combination of the components of the trim make it applicable for high pressure head, low noise and high precision to meet the different demand of usage for customers. The modular, double-side valve seat and compressing connection of the valve body, greatly enhance the sealing grade an service life of the valve lead, make it easy to repair and greatly increase the general performance of the regulating valve.
2) the pn class is ansi are 150and 300, the dn scale 3/4-8inches under the temperature of -190celsius-600celsius. The sealing grade of the metal sealing type is iv-v and the soft sealing vi. There is zero leakage and the flow property is equal percent approximately.
ysiq10�
characteristics:
the zm10 multiple springs actuator using modular design can be freely replaced on spot, reacted and the spring can be effectively protected from the corrosion to prolong the service life of actuator for the usage of the customers. The actuator and the intelligent electric valve positioner are connected pipelessly to strengthen the anti-seismic performance, stability and regulating precision meet or precise regulation of the working conditions.
main material
valve body: wcb, cf8, cf3, cf8m, cf3m
valve seat: 304,304l, 316, 316l
valve stem: 304, 304l, 316, 316l, 630.
