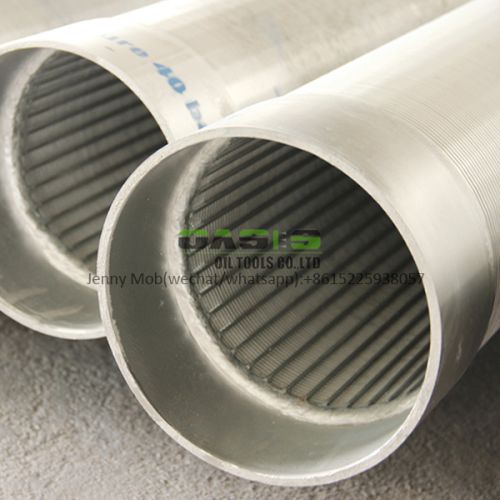

Oasis Stainless Steel Water Well Screens, Thickness : 0.5mm

₹ 15,288 / Set

MOQ10 Set(s)
BrandOasis
Materialstainless steel& carbon steel
Length5.8m~6m
CertificateISO
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

CertificateISO
Hole Shapesquare
Itemwater well screen, Johnson screens
Connection wayWelded ends
BrandOasis
Number Of Flower9 5/8'' stainless steel 304 316 johnson screens
Materialstainless steel& carbon steel
Thickness0.5mm
Length5.8m~6m
Applicationwater well drilling
Functionwater filter
Product name9 5/8'' stainless steel 304 316 johnson screens water well screens
Length5.8m~6m

water well screen, which also could used as oil well screen, wedge wire screen, water strainer, johnson screen, v-shaped screen, vee wedge wrapped screen, wire wrapped screen, wire point pipe,etc.

Specifications of Johnson wire point pipe/ wedge wire well screen
Slot size (mm)	0.10, 0.15, 0.2, 0.25, 0.30 - 3mm
Lengths	6Mts. & 3Mts, we suggest 5.8m(adapt to the container)
Grades	Different grades suitable for tube well depths up to 300ft, 600ft, 900ft , and 1500ft.
Material	Low Carbon Galvanized Steel (LCG) and Stainless Steel (SUS304, SUS304L, SUS316, SUS316L) or can be made according to the customers requirements
Diameter	ranging from 15 to 275mm
End Connection	Plain beveled ends for butt welding or threaded.(We can customize)
Open area	up to 60%

316 stainless steel Johnson water well screen tube deep well strainer pipe

Product name	316 stainless steel Johnson water well screen tube deep well strainer pipe
Material	Stainless steel &carbon steel
Slot size	0.02mm~15mm
Connection	Welded beveled, threaded ends,flange
Sample	Avaliable
Package	Wrapped by woven bag
Application	water well drilling

Additional Information

Payment Terms L/C, D/A, D/P, T/TWestern Union
Port of DispatchQingdao/Tianjin/Shanghai
Packaging Details1. Wrapped by woven bag 2.wrapped by bubble bag 3.Foxed by wooden strip
Delivery TimeWithin 25days
