Stainless Steel Wedge Wire Screen

We are offering stainless steel wedge wire screen.

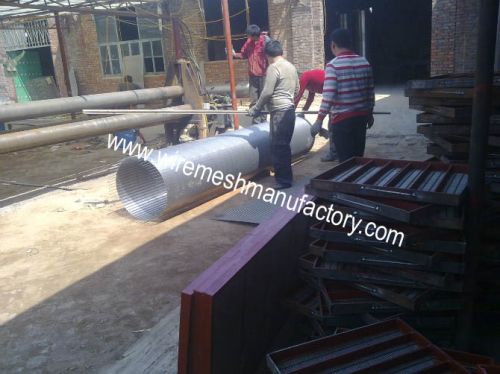

stainless steel wedge wire screens is made of ss "v"shaped and ss "v"shaped or ss "v"shaped and ss rod ,and ss "v"shaped and ss "convex "shaped rod with an unique weldeding process,offering great strenght .precision ,long service life . The screen cylinder have a perfectly flat and smooth surface with rectangular openings , also named ss wedge wire screen, ss wedge profile wire screen cylinder or ss wegde wire cylindrical screen .
the welding types: argon arc welding
the support rode : long wedge wire "v" shape wire .convex shape wire.
profile wedge wire
b (mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
h (mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
α (°) 6° ,10° , 12°
gap slot width(mm) 0.3mm-10mm
long wedge
support wire
convex shape
support rod
b(mm) 1mm-3mm b (mm) 3mm-5 mm
h(mm) 4mm-6mm h (mm) 3mm-5mm
support rod
　width(mm) 2.30 2.30 3.00 3.70 3.30
　height(mm) 2.70 3.60 4.70 5.60 6.30
advantages:
a continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
a ’v’ shaped profile wire which avoids clogging and ensures uninterrupted flow. A uniform and efficient well development due to the continuous slot opening
screen size id od female thread diameter
in mm in mm in mm in mm
2 51 2 51 25/8 67 23/4 70
3 76 3 76 35/8 92 33/4 95
4 102 4 102 45/8 117 43/4 121
5 127 5 127 55/8 143 53/4 146
6 152 6 152 65/8 168 7 178
8 203 8 203 85/8 219 91/4 235
10 254 10 254 103/4 273 113/8 289
12 305 12 305 123/4 324 133/8 340
14 356 131/8 333 14 356 — —
16 406 15 381 16 406 — —
20 508 18 3/4 476 20 508 — —
uses:
wedge wire screen cylinder has a wide range of applications in the field of process, engineering such as sugar juice filtration, sieving of petroleum, chemical industy, pharmaceutics, food and beverage, metallurgy and coal, also can be used in filtration of water treatment etc.
we can also make manufacture according to your detail specifications and we assure that we will give you the best services.
