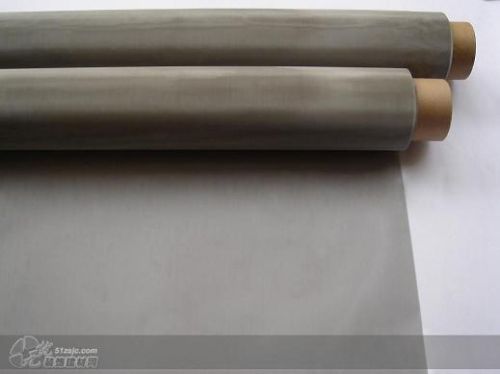

Stainless Steel Wire Mesh, Width : 40mm-500mm

We are offering stainless steel wire mesh.
Material:sus302,304,304l,316,316l.
Weaving:plain weaving,twill weaving and dutch weaving.
Features:it has the characteristics of heat-resisting,acid-resisting,alkali-resisting,wear-resisting and corrosion-resisting.
Application:it is widely used in the processing of oil,chemical,food,pharmaceutical and the sorting and screening of solid,liquid and gas in mine,metallurgy,airspace and machine making.
Packaging:waterproof paper;spool. Special packing can be arranged upon request.
Specification:
mesh:20*20-200*200
guage:0.02-0.4mm
length:30-200m width:914,1m,1.2m,1.5m,2m. Special size can be made upon request.
Mesh/inch wire diameter aperture open area weight(lb) /100 square foot
inch mm inch mm
1x1 0.080 2.03 0.920 23.37 84.6 41.1
2x2 0.063 1.60 0.437 11.10 76.4 51.2
3x3 0.054 1.37 0.279 7.09 70.1 56.7
4x4 0.063 1.60 0.187 4.75 56.0 104.8
5x5 0.041 1.04 0.159 4.04 63.2 54.9
10x10 0.025 0.64 0.075 1.91 56.3 41.2
24x24 0.014 0.356 0.0277 0.70 44.2 31.8
80x80 0.0055 0.140 0.0070 0.18 31.4 16.9
90x90 0.005 0.127 0.0061 0.16 30.1 15.8
100x100 0.0035 0.089 0.0065 0.17 42.3 8.3
120x120 0.0037 0.0940 0.0064 0.1168 30.7 11.6
160x160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
200x200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250x250 0.0016 0.0406 0.0024 0.0610 36.0 4.4
300x300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325x325 0.0014 0.0356 0.0017 0.0432 30.0 4.40
400x400 0.0010 0.0254 0.0015 0.370 36.0 3.3
500x500 0.0010 0.0254 0.0010 0.0254 25.0 3.8
635x635 0.0008 0.0203 0.0008 0.0203 25.0 2.63
