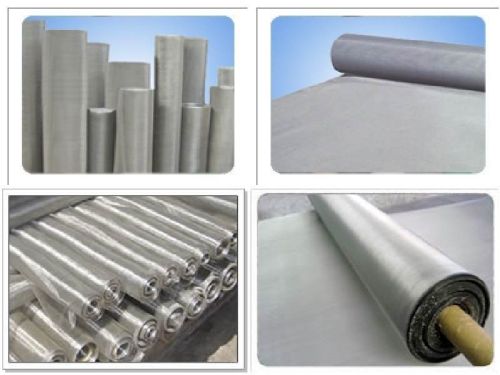

Stainless Steel Wire Mesh, Brand Name : YKM

1. Stainless Steel Wire Mesh Brief Introduction:
Wire diameter: 0.01mm-5mm
Mesh size: 3mesh-635mesh as your request
Weave style: plain weave, twill weave, Dutch weave are all available.
Material: SUS302, 304, 304L, 316, 316L stainless steel wire
2. Standard roll size of Stainless Steel Wire Mesh :
Roll width: 2'' to 8"
Roll length: 50'' to 100"
Special specifications are also available at customer's request.
3. Package of Stainless Steel Wire Mesh:
We generally manufacture the stainless steel wire mesh in roll, and pack with water proof paper in side and weave bag outside; or in carton, wooden box, pallet, or according to customer's special requirement.
4. Feature of Stainless Steel Wire Mesh:
Acid-resisting, alkalinity-resisting, heat-resisting, wear-resisting, oxidize-resisting, etc.
5. Application of Stainless Steel Wire Mesh:
Stainless steel wire mesh is widely used in chemical industry, environment protection, mine industry, airspace industry, paper-making, electronic industry, metallurgy industry, food industry, pharmacy, etc.
6. Stainless Steel Wire Mesh Specification:
Specification List of Stainless Steel Wire Mesh
MeshInch Wire Gauge(SWG) Aperture in mm
3mesh x 3mesh 14 6.27
4mesh x 4mesh 16 4.27
5mesh x 5mesh 18 3.86
6mesh x 6mesh 18 3.04
8mesh x 8mesh 20 2.26
10mesh x 10mesh 20 1.63
20mesh x 20mesh 30 0.95
30mesh x 30mesh 34 0.61
50mesh x 50mesh 38 0.36
60mesh x 60mesh 40 0.30
80mesh x 80mesh 42 0.21
120mesh x 120mesh 44 0.13
150mesh x 150mesh 46 0.108
160mesh x 160mesh 46 0.097
180mesh x 180mesh 47 0.09
250mesh x 250mesh 48 0.061
280mesh x 280mesh 49 0.060
300mesh x 300mesh 49 0.054
350mesh x 350mesh 49 0.042
400mesh x 400mesh 50 0.0385
