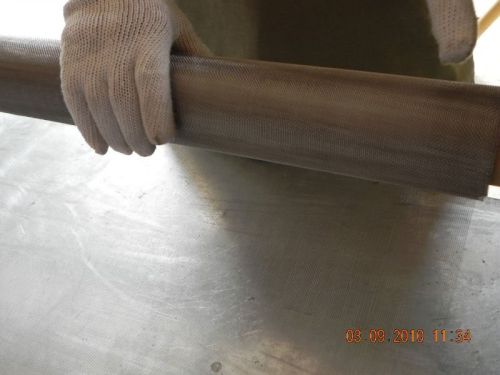

Stainless Steel Wire Mesh, Width : 40mm-500mm

We are offering stainless steel wire mesh.
stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth. T304 is the most common, but other are used in specific applications to take advantage of each gradeã¢ï¿½ï¿½s unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.
our stainless steel wire mesh products are generally made of stainless steel type 302, 304, 304l, 316, 316l, 321 and 430 etc. We produce wire cloth in all kinds of forms. The weaving is determined according to our customersã¢ï¿½ï¿½ specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.
popular weaving types we use for wire mesh cloth: plain weave, twilled weave, dutch plain weave, dutch twilled weave, reverse weave, five heddle weave.
mesh/inch wire diameter aperture open area weight(lb) /100 square foot
inch mm inch mm
1x1 .080 2.03 .920 23.37 84.6 41.1
2x2 .063 1.60 .437 11.10 76.4 51.2
3x3 .054 1.37 .279 7.09 70.1 56.7
4x4 .063 1.60 .187 4.75 56.0 104.8
4x4 .047 1.19 .203 5.16 65.9 57.6
5x5 .041 1.04 .159 4.04 63.2 54.9
6x6 .035 .89 .132 3.35 62.7 48.1
8x8 .028 .71 .097 2.46 60.2 41.1
10x10 .025 .64 .075 1.91 56.3 41.2
10x10 .020 .51 .080 2.03 64.0 26.1
12x12 .023 .584 .060 1.52 51.8 42.2
12x12 .020 .508 .063 1.60 57.2 31.6
14x14 .023 .584 .048 1.22 45.2 49.8
14x14 .020 .508 .051 1.30 51.0 37.2
16x16 .018 .457 .0445 1.13 50.7 34.5
18x18 .017 .432 .0386 .98 48.3 34.8
20x20 .020 .508 .0300 .76 36.0 55.2
20x20 .016 .406 .0340 .86 46.2 34.4
24x24 .014 .356 .0277 .70 44.2 31.8
30x30 .013 .330 .0203 .52 37.1 34.8
30x30 .012 .305 .0213 .54 40.8 29.4
30x30 .009 .229 .0243 .62 53.1 16.1
35x35 .011 .279 .0176 .45 37.9 29.0
40x40 .010 .254 .0150 .38 36.0 27.6
50x50 .009 .229 .0110 .28 30.3 28.4
50x50 .008 .203 .0120 .31 36.0 22.1
60x60 .0075 .191 .0092 .23 30.5 23.7
60x60 .007 .178 .0097 .25 33.9 20.4
70x70 .0065 .165 .0078 .20 29.8 20.8
80x80 .0065 .165 .0060 .15 23.0 23.2
80x80 .0055 .140 .0070 .18 31.4 16.9
90x90 .005 .127 .0061 .16 30.1 15.8
100x100 .0045 .114 .0055 .14 30.3 14.2
100x100 .004 .102 .0060 .15 36.0 11.0
100x100 .0035 .089 .0065 .17 42.3 8.3
110x110 .0040 .1016 .0051 .1295 30.7 12.4
120x120 .0037 .0940 .0064 .1168 30.7 11.6
150x150 .0026 .0660 .0041 .1041 37.4 7.1
160x160 .0025 .0635 .0038 .0965 36.4 5.94
180x180 .0023 .0584 .0033 .0838 34.7 6.7
200x200 .0021 .0533 .0029 .0737 33.6 6.2
250x250 .0016 .0406 .0024 .0610 36.0 4.4
270x270 .0016 .0406 .0021 .0533 32.2 4.7
300x300 .0051 .0381 .0018 .0457 29.7 3.04
325x325 .0014 .0356 .0017 .0432 30.0 4.40
400x400 .0010 .0254 .0015 .370 36.0 3.3
500x500 .0010 .0254 .0010 .0254 25.0 3.8
635x635 .0008 .0203 .0008 .0203 25.0 2.63
