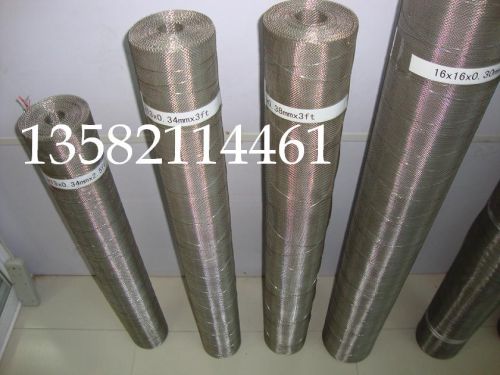

Stainless Steel Wire Mesh,stainless Steel Wire Cloth

Our stainless steel wire mesh products are generally made of stainless steel Type 302,304,304L,316,316L,321 and 430 etc. We produce wire cloth in all kinds of forms. The weaving is determined according to our customers’ specific requirements, such as the material, the wire diameter, the size of the mesh , width and length. Assortment available:
Plain weave stainless steel wire mesh
Twill weave stainless steel wire mesh Plain weave: Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.
Characteristics: square aperture, high flow through, relative high open area, as result less pressure drop during filtration suitable for all kinds of filtration up to 63 µm. Twill weave: Each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter for both(warp and weft)is mostly the same.
Characteristics: square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm .
