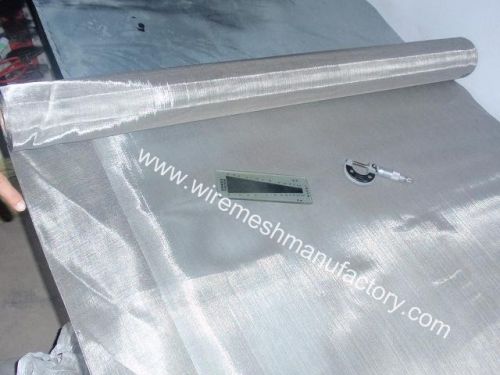

Stainless Steel Woven Mesh, Brand Name : glory

We are offering stainless steel woven mesh.
stainless steel woven mesh
the stainless steel wire mesh is made of the ss wire to woven , also called stainless steel woven mesh screen , to made the square hole with plain weaven, named stainless steel square mesh. For the twilled woven ,can called stainless steel twilled mesh cloth.
the stainless steel wire mesh and screen mesh is reeds with imports of wire mesh for weave .to make sure the hole or mesh have uniform size ,smooth and beautiful mesh screen for suitable to filter industrial.
the material have ss 304, 304l, 316, 316l .
the weaving type: plain weave, twill weave,
the woven mesh width : 0.5m-1.5m
packing: water-proof paper ,woven bag ,wooden box and also can be made as per client requirement
the stainless steel woven wire mesh its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.
plain woven : each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.
characteristics: square aperture ,high flow through , relative high open area, as result less pressure drop during filtration suitable for all kinds of filtration up to 6
stainless steel woven wire mesh (plain weave)
mesh/inch wire diameter(mm) aperture (mm)
14mesh 0.45 1.362
16mesh 0.4 1.188
18mesh 0.35 1.06
20mesh 0.3 0.97
30mesh 0.25 0.596
40mesh 0.21 0.425
60mesh 0.15 0.273
90mesh 0.11 0.172
twill weave :each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter for both(warp and weft)is mostly the same.
