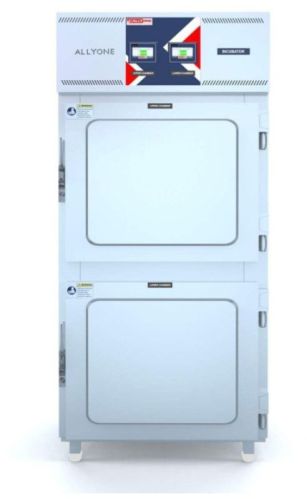

Stand Alone Dual Chamber

Temperature Range: -10°C to -30°CAccuracy: ≤ +/- 3.0°C
Accuracy: +/- 1.0°CUniformity: ≤ +/- 2.0°C*
Uniformity : +/- 5.0°C*Temperature Range: 2°C to 8°C
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

Allyone with our rich experience & prowess in designing robust customized products as per the specific demands of clients & users have designed a “Dual Chamber” which saves space & cost and....

View More Details

Send Enquiry

Company Information

Lab and Life Instruments Pvt Ltd

Cbd Belapur, Navi Mumbai, Maharashtra

View Number

Member Since 3 Years
Nature of Business Distributor

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Allyone with our rich experience & prowess in designing robust customized products as per the specific demands of clients & users have designed a “Dual Chamber” which saves space & cost and offers tremendous flexibility & convenience to the user.A Dual Chamber offers you flexibility when you are tied up with multiple restrictions of space & choices.Allyone offers customizes solution to you and you can choose between various combinations, viz:

Upper Compartment: Deep Freezer, Lower Compartment: Cold Chamber or

Cold Chamber + Heating/Cooling Incubator or
Heating/Cooling Incubator + Heating/Cooling Incubator orStability/Humidity Chamber + Stability/Humidity ChamberSo on & so fourth.

*Measured with high accuracy data-logger at sample storage area with standard Set Point

*Dual Chamber also available as per customized or Made to Order dimensions and requirements like: CC+Incubator, Incubator+Incubator, Stability + Stability

Standard Chamber Features & Provisions:

Construction: Dynamically Designed PUF filled Double walled, Inner Tank & outer body with SS 304 with PUF Density of 40Kg/m³ with thickness 60mm OR 100 mm depending on the chamber combination.

Sample Storage: Trays: Perforated types (CNC punched). Strengthened with support rails to prevent deformations, Height adjustable to every ½”

Door: PUF Insulated External door mounted with imported hinges & locks, Inner glass doors with latches. Door frame is secured with a silicone rubber gasket on the entire perimeter to ensure an air tight, leak tight chamber.

Door Operation: Biometric &/or Password protected-from software & HMI

Control System:

Ergonomically designed Control Panel.
Ferrule printed wiring.
Advanced PLC Program with built in processor-based Auto Tuning.
2 X 4.3″ HMI Color LED Display. (Individual HMI for each chamber)
Built in Redundancy & Safety.
Advanced High Accuracy “Transmitter Sensors” with output of 4-20 mA.

Temperature Control:

Efficient, Reliable, Time tested & Trustworthy Refrigeration Design.
Built in redundancy with PLC based Auto Change Over during power outage or component failure viz: Compressor, Humidification system
PLC Controlled “U” Shaped SS Air Heater Banks.

Humidity Control: S S Reservoirs- steam kettles forms Humidification system(for Stability/Humidity Chamber)

Safety: Dedicated Thermostats for all key points: Chamber High Temperature, Steam Kettle Element (for Stability/Humidity Chamber), Utility High Temperature.

PLC Safety Cut Off for Temperature & Humidity: High, Higher & Low, Lower safety cut off.
