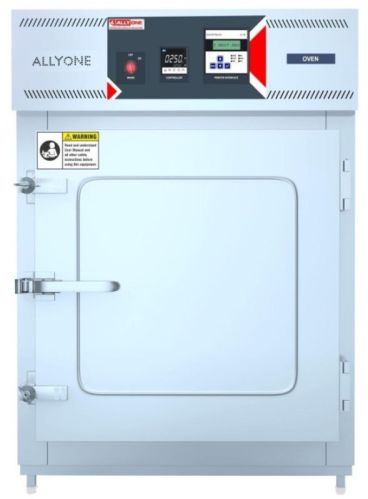

Stand Alone Ovens (lod, Glassware Drying, Hot Air, Lab)

Ovens are recognized by multiple names depending on their usage like: Hot air ovens, Loss On Drying (LOD) Ovens, Lab Oven & Glassware Drying Oven.

Ovens use dry heat to sterilize rapid drying of materials which are not heat sensitive & can withstand high temperature (eg. Glassware & certain chemical powders from which moisture needed to be removed), curing & testing at high temperature.

Allyone ovens are meticulously designed for uniform heat distribution within the chamber & well insulated so as to keep the heat in and conserve energy, resulting in time & power saving.

Standard Chamber Features & Provisions:

Construction: Dynamically Designed PUF & Glass wool filled Double walled, Inner Tank & outer body with SS 304 with 100 mm thickness

Sample Storage: Trays: Perforated types (CNC punched). Strengthened with support rails to prevent deformations, Height adjustable to every ½” ог Wire Mesh Trays as per requirement.

Door: Glass wool Insulated External Projected door mounted with imported hinges & locks, Door frame is secured with silicone gasket on entire perimeter to ensure air tight, leak tight chamber.

Door Operation: Biometric &/or Password protected-from software & HMI

Control System:

• Ergonomically designed Control Panel.
• Ferrule printed wiring.
• Advanced PLC Program with built in processor-based Auto Tuning.
• 4.3″ HMI Color LED Display.
• Built in Redundancy & Safety.
• Advanced High Accuracy PT100 “Transmitter Sensors” with output of 4-20 mA.

Temperature Control: PLC Controlled “U” Shaped SS Air Heater Banks.

Safety: Dedicated Thermostats for: Chamber High Temperature.

PLC Safety Cut Off for Temperature: High, Higher
