Standalone Controller

We are offering standalone controller with smart functions.
introduction

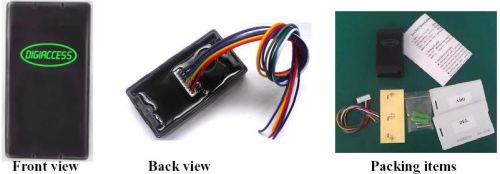

jac115 is 1000 users capacity, stand alone single door access controller with built-in em id
proximity card reader. User card can be managed by master card. Small and compact case with
full epoxy potting, works with interface connecting one external wiegand26 (em or hid or other
technology)reader,the flashing backlight plate makes your logo outstanding from competitor.
( customize logo with different color back light is optional)
feature
1. Built-in em format proximity cmard reader module.
2. Master cards are used for adding or deleting card, can be built by user.
3. External wiegand interface, works with wiegand 26 reader easy to expand the system with
different rfid proximity card technology, such as hid proximity card or mifare rfid card.
4. Dry c type relay output, suitable for all kinds of locks.
5. Door open delay is adjusted from 1-15 seconds by master card.
specification
power : 12vdc at 100ma, (not includes lock driver). A linear regulator is recommended.
interface: wiegand26 .
reader range: upto 8 cm.
frequency: 125khz.
support card: em id card or em 4100 compatible rfid cards.
operation temperature: -10°c --- +70°c.
operation humidity: 5%-95% (no condensing).
audio/visual indication: green led backlight and buzzer signal output.
ip65 waterproof.
dimension: 80 x 43 x 13mm
weight: 150g
