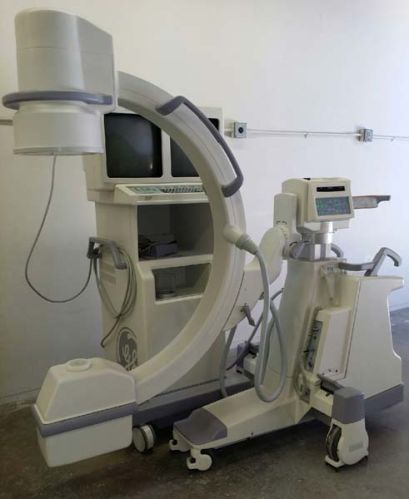

Standard C-Arm (OEC 8800)

2007 OEC 8800 C-Arm For Sale!

The OEC 8800 is a great solid C-arm for pain management and orthopedic surgery.

Call or e-mail for pricing.

OEC 8800 Specifications :

Design :

• Mobile C-arm
• Separate dual monitor cart

• Generator :
• 20 kHz high frequency
• 2.2 kW power
• Up to 110 kVp

X-Ray Tube :

• Stationary Anode
• 0.5 mm and 1.5 mm focal spot
• Anode heat capacity: 74,200 HU
• Anode cooling rate: 39,960 HU/min

Video Imaging System & Processing :

• Tri-mode 9”/6”/4.5” II
• 1k x 1k x 16 bit image processing
• 370O motorized camera rotation
• Touch screen system control
• Noise filter with on-screen indicator
• Optional DICOM 3.0 interface

Electrical :

• Input power (60Hz or 50Hz)
• 100V @ 20A
• 120V @ 15A
• 200V, 220V, 230V, 240V @ 10A

Dimensions :

Mainframe

• System length - 69.8” (177cm)
• System height – 69.5” (176.5 cm)
• System width - 33" (84cm)

C-arm :

• SID 39" (99cm)
• Free space in arc 31" (79cm)
• Depth in arc 26" (66cm)
• Orbital rotation 135° (90°/45°)
• Manual rotation 360° (180°/180°)
• Wig/wag 20°
• Horizontal travel 8" (20cm) 8" (20cm) 8" (20cm)
• Vertical travel 18" (46cm)

Workstation :

• Height - 64" (163cm)
• Width - 27" (69cm)
• Depth - 27" (69cm)
