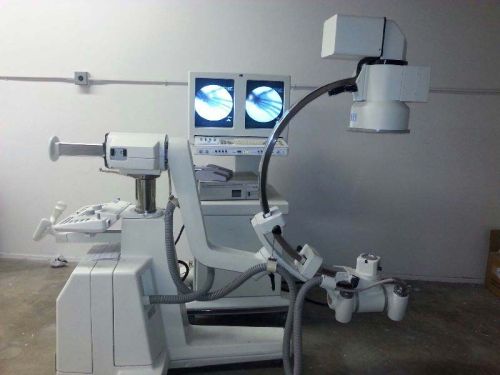

Standard C-Arm (OEC 9400)

Used OEC 9400 C-arm for Sale!  Priced at $9,500 + shipping.

The OEC 9400 C-Arm system is a versatile entry level unit that is great for a verity of procedures such as Pain Management, General Surgery, Orthopedics, and Vascular Surgeries.

9400 C-Arm X-Ray System

Generator :

• 2.5 kHz High frequency
• 6.0 kW Full-wave
• Up to 120 kVp
• Up to 100 mA for radiographic film exposures
• Fluoro boost mode up to 20 mA (optional)
• Pulsed fluoro mode
• Pulsed fluorography mode up to 60 mA (optional)
• Full power from outlet :
• 50 Hz or 60 Hz
• 100V-15A to 240V-12A

X-Ray Tube :

• Rotating anode X-ray tube
• Focal spots: 0.3 mm and 0.1 mm
• Anode heat capacity: 300,000 HU
• Anode cooling rate: 70,000 HU/min
• Housing heat capacity: 1,250,000 HU Collimator

Collimator :

• Dual leaf collimation
• Minimum beam size < 5 X 5 cm2
• Leaves are continuously variable
• Remotely controlled from the C-Arm control panel Fluoroscopy Mode

Fluoroscopy Mode :

• Focal spot: 0.3 mm
• kVp range: 40 – 120 kVp
• mA range: 0.2 – 5.0 mA normal mode
• mA range: Up to 20 mA boost mode (optional)
• Auto, manual and pulsed modes
• Continuous or One-Shot operation
• ABS varies mA, kVp and camera gain
• User specific ABS tables

Pulsed Fluoroscopy Mode (optional) :

• Focal spot: 0.3 mm
• kVp range: 40 – 120 kVp
• mA range: 0.2 – 5.0 mA
• Pulse rate: 1, 2, 4, or 8 pulses per second
• Pulse width: 30 or 50 milliseconds
• Computer controlled ABS, mA, kVp and camera gain

Pulsed Fluorography Mode (optional) :

• Focal spot: 0.3 mm
• kVp range: 40 – 120 kVp
• mA range: Up to 60 mA
• Pulse rate: 1, 2, 4, or 8 pulses per second
• Pulse width: 35 or 50 millisecondsRadiographic Mode

Radiographic Mode :

• Focal spot: 0.3 mm or 1.0 mm
• Focal spot automatically selected
• 0.3 mm – mAs range: 1 – 100 mAs
• 1.0 mm – mAs range: 100 – 3
