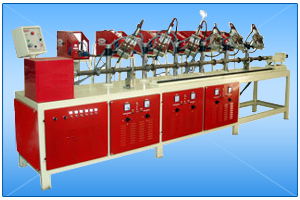

Standard Cuplock Vertical Welding Machine/System

Standard Cuplock Vertical Welding System along with Tagging Fixture for Bottom Cups and seven lock pins,380-415 Volts 50-60Hz -60Hz. Only. (Three Hot Lines)
Welding Automation
Cuplock Welding Machine
Key Features:- High production , Easy to operate, Easy to maintain, Uniform welding results
Description : Automatic Standard cuplock welding machine is used to weld six cups at time with pipe with making a tag between them on tagging fixture ,It gives high production and accuracy to product. Cuplocks are used with combination of ledger posts,Base jacks to make a structure. All the components are used in combination of each other Base jack welding machine,Inner prop welding machine,Outer prop welding machine,Cuplock welding machine,Ringlock welding machine
National Cutting Tools provides complete solution for scaffolding and formwork by providing Automatic scaffolding machines.
Technical Specifications:
I Cuplock Welding Machine
Electric Supply: Single Phase 220 + - 10 % Volts Frequency HZ 50/60
Speed: 2 to 10 RPM
Motor Drive: 75 C
Motor: Type: DC
Torch Clamping : PNEUMATIC
Length Adjustment : Up to 1000 mm
Dimension : L x W x H 5.4x2.5x4.7 (Foot)
