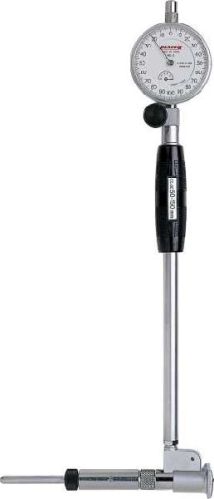

Standard Cylinder Gauge

CC Series

Peacock offers a complete line of Bore Gauges with interchangeable anvils and necessary accessories to perform close tolerance measurements of holes, taper and roundness.

1 Dial gauge mounting knob is very simple of and sure avoiding demerit of

collet – system.

2 The Contact point is tungsten carbide ball.

3 The standard ball tipped at the replacement rod is made of steel.

The sintered hard-alloy ball is also available to tip.

4 Wide range accuracy………………5 µ m or less

Adjacent error……………………….2 µ m or less

Repeated accuracy…………………2 µ m or less

5 Effective measuring range is 0.5 mm ( CC – 02 CC – 01)

6 Effective measuring range is 1.2 mm ( CC -1 to CC- 6 )
