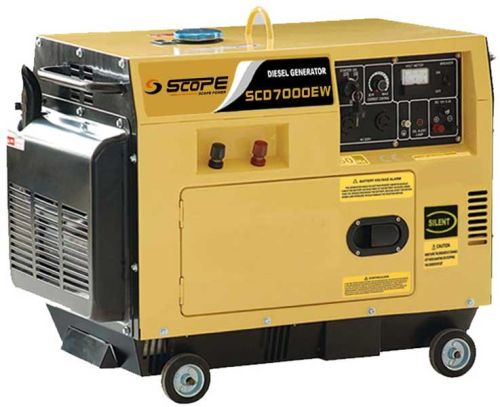

Standard Panel Silent Type Diesel Generator

We Offer Standard Panel Silent Type Diesel Generator.
Rated frequency (Hz) 50 / 60
Rated power (kW) 4.5 / 5.0
Rated voltage (V) 110, 115, 120, 220, 230, 240, 110/220, 115/230, 120/240
Rated current (A) 40.9/20.4, 39.1/19.5, 37.5/18.7, 45.4/22.7, 43.4/21.7, 41.6/20.8
No. of phase Single
Power factor (cosΦ) 1
Welding voltage at zero load (DC)(V) 65-70
Rated welding current DC(V) 160
Welding voltage (DC)(V) 25-30
Welding load continous ratio 60%
Welding current adjustment range (A) 50-180
Electrode Φ(mm) 1.6-4.0
Rated speed (r/min) 3000 / 3600
Excitation mode Self-excitation and constant voltage (AVR)
Recifying mode IGBT+nine-phase rectifying bridge (PWM)
Insulation grade F
Pole number 2
Engine model SCD186FA
Engine type Single-cylinder, four-stroke, air-cooled, direct injection
Displacement (ml) 418
Bore x stroke (mm) 86x72
Compression ratio 19.1:1
Rated power kW(r/min) 6/3000 6.6/3600
Starting system Electric starter
Fuel type 0#(summer), -10#(winter),-35#(chill cold) light diesel
Luel oil brand L-CED Grade 15W30 or 15W40
Fuel consumption (g/kW.h) 275.1 / 281.5
Fuel tank capacity (L) 12
Continous running time (hr) 7
Noise level (7m) db(A) 72
Structure type Silent
Drying weight (kg) 171
Gross weight(kg) 181
Overall dimension (mm)(LxWxH) 925x545x770
