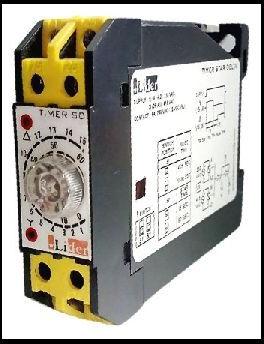

Star Delta Timer

When the motor is started, stator draws the high current which is 8-10 times that of the motor rated current. Before staring the motor, it is necessary to reduce the voltage applied to the motor and to provide low voltage start to induction motors. This is achieved by using Star to Delta conversion.

Star/Delta starters are probably the most common reduced voltage starters in the 50Hz industrial motor world.

Star – Delta starter generally comprises of contactors and an adjustable timer to enable starting of the induction motor in star mode and then switchover to delta mode after the preset time so decided by the timer.

Our LIDER STAR DELTA TIMER offers 2 selectable modes in STAR SET TIME range-Selectable by switch mode (0- 15 secs) or (0-60 secs) and then can be set through rotary switch.

Our LIDER STAR DELTA TIMER also offers Star to Delta Change Over PAUSE TIME of 40 ms or 100 ms by switch mode.

APPLICATIONS

Our products are ideally suitable for use in application like machine tools, material handling, process control, motor control and all three phase equipments-Electrical Panels. Compressor motors. Electrical Test benches, Submersible pumps, Genset panels, Cold storages, Hoist Motor Controls, Valve Actuator Motors, Machine Tools, Injection Molding Machines, Packaging units and Central Air Conditioning Plants etc.

ADVANTAGES

Small device, Easy to install, Solid state PCB.

Separate NO Contacts for Star & Delta

No Separate Auxiliary Supply Required.

No More failures of contactors in Star Delta starting during changeover

Sleek 22.5 mm wide housing and compact design saves panel space.

Horsepower(HP)- suitable for any HP rating pumps

Ensures unmatched reliability and offer excellent “Value for Money”.

Product directly going from Manufacturer to Customers.
