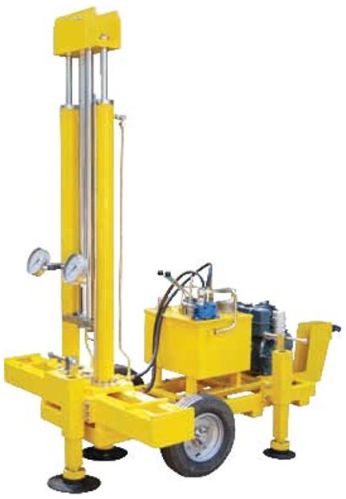

Static Cone Penetrometer 100 Kn Engine Driven

For reaching greater depths and to facilitate easy and constant rate of penetration of the cone, this engine-driven Static Cone Penetrometer of 100 kN (10,000 kgf) capacity is preferable.

The equipment consists of a hydraulic pump driven by a Diesel Engine. The whole system is mounted on a towable trolley fitted with pneumatic wheels. The pumping unit and ram are connected by means of flexible pipes through a direction control valve. The hydraulic ram moves on a two-pillar stand mounted on a trolley. Complete with the following:

Penetration Cone steel, 60° cone angle, 10 cm2 base area, with Friction Jacket    -    One
Mantle Tube, 36 mm uniform OD with Sounding Rod , length 1 m    -    15
Load Measuring Head with Automatic Cut-off Valve, Pressure Gauges and Oil Can    -    One
Pressure Gauge 0-600 x 5 kg/cm2    -    One
Pressure Gauge 0-100 x 1 kg/cm2    -    One
Screw Anchors (45 cm)   -   Six
Screw Anchors (30 cm)    -    Six
Screw Anchors (20 cm)    -    Six
Screw Anchors Rods with cone    -    Six
Driving handle for Screw Anchors    -    One
Extension Pipe for Handle    -    Four
Clamping Screw with Nuts    -    Six
