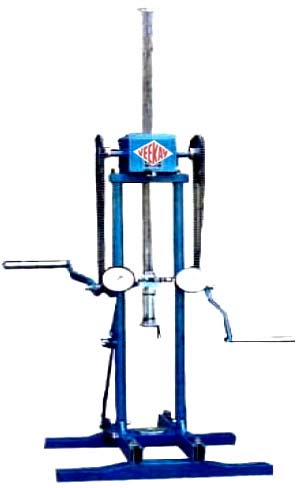

Static Cone Penetrometer

We provide Static Cone Penetrometer which is a hand operated Cone Penetrometer. Our Static Cone Penetrometer operates by manually through a gearing arrangement. We make sure that our product can be conveniently operated. Best feature of our Static Cone Penetrometer is that the gear box and pinion are fixed on two handles, sprockets and chain arrangement. It is made sure that the movement of the rack is guided by a bracket (attached to the rack) and two pillars. Another main feature of our Static Cone Penetrometer is its penetration resistance which is indicated on hydraulic gauges through a hydraulic measuring head. Components

• Penetration Cone, steel 60 angle 10cm base area with friction jacket
• One Mantle Tube, non-uniform , 36mm OD at the two ends and reduced dia in between with sounding rod working length 1m-fifteen
• Load Measuring Head, with Automatic Cut off valve and Oil Can, without Pressure Gauge One 2 Pressure Gauge, 0-60kgcm One 2 Pressure Gauge, 0-160kgcm One Screw Anchor, with Bolt Four Anchor Driving Handle One Rod One Spanner One Extension Pipe 0.5m long
• Two pressure gauges of 15cm dia dial and 2 capacities 0-160kgcm are provided
• An automatic cut-off valve, to protect the low capacity gauge from being overloaded is provided
• The 2 valve can be adjusted and locked at desirable values between 20 to 60cm
• A provision is made to anchor the unit to the ground (with the help of four anchors supplied with the unit) and there is a provision for lateral 2 movement of the unit so that subsequent tests could be performed without shifting the entire anchorage
• A 10cm penetration cone with friction jacket is provided along with fifteen mantle tubes (non-uniform having an effective length of 1 m each with sounding rods for finding out the cone (point) resistance or jacket friction
