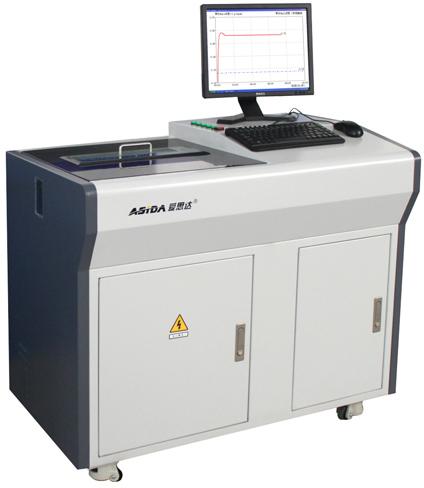

Static Ionic Contamination Tester

Dynamicstatic ionic contamination tester lz22 lab testing machine usage the instruments are suitable for the ion contamination levels testing of bare pcb board as well as pcba before and after cleaning and coating processes. Features (1)precise adopting online high-precision conductivity meter, fully enclosed circulatory system, mixed anion and cation exchange resins, as well as real-time processing algorithms and temperature compensation technology. (2)efficient adopting heat extraction and high-speed loop flushing technology (3)characteristic unique dynamic static test mode. (4)customize volume can be customized according to the requirements. Parameters item lz22 test method staticdynamic testing volume of water tank 352mm×70mm×600mm(l×w×h) about 15l machine size 1050mm×600mm×920mm(l×w×h) test size 10 cm × 20 cm ~35 cm × 60 cm power 1300w machine weight 115kg test accuracy ±5% resolution of conductivity 0.001uscm2 electrode resolution range 0.0001uscm2~20 uscm2 (nacl:300 ~ 100000 ug ) measuring circuit board area 1000-4200cm2 proportion of extract 0.85~0.855 reference 66100mω power requirement ac220v 50hz working environment temperature 22℃±15℃ efficiency 5～15 minutes every time working extract temperature 40℃±2℃ life of  the filter ≤0.12 uscm -16000pcs ipa loss test 30 pcs-1l the heating efficiency 40℃±2℃ ~ 15-25 min
