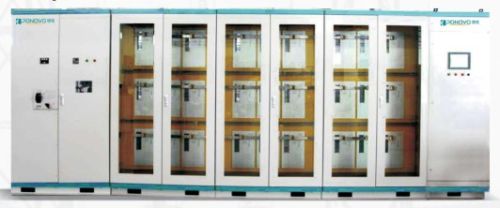

Static Synchronous Compensator

We are offering statcom (static synchronous compensator) for wind power, electric distribution, rail way steel plants and cement plants.
1 - equipment introduction
statcom (static synchronous compensator, also known as svg). It is an important device for flexible ac transmission system (facts). Its appearance represents the application of most advanced technology for dynamic var compensation.
depending on advantages of powerful technology and human resource, beijing ponovo introduces several types of statcom with different topology to meet customers’ various needs. Accuvar asvc – 100 type of dstatcom applies chained-multilevel structure and featured with compact design, less power loss, fast respond and module configuration for easier expansion and maintenance.
2- main function
- fast reactive power adjustment. It can produce and absorb reactive power
- restrain voltage fluctuation and flicker
- constant current, effectively restrain voltage drop
- compensate negative sequence, implement balanced power supply
- resistance to harmonics, able to compensate the part of harmonic current
3- technical specification
- rate frequency: 50hz or 60 hz
- rate voltage: 3kv/6kv/10kv/22kv/35kv
- rate capacity: ± 1 ~ ± 200 mvar
- rang of reactive power adjustment: capacitive ~ inductive continuous smooth adjusting
- over load capability: running time for overload of 1.15 ≥ 30 min
- controller response time: ≤ 1ms
- voltage output thd before connecting with grid:
