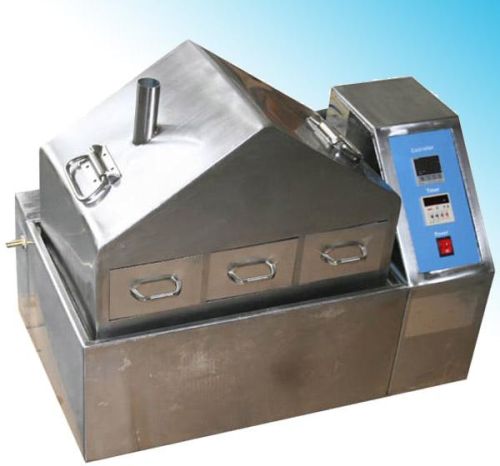

Steam Aging Test Chamber, Brand Name : Yuanyao

We offer Steam Aging Test Chamber.
Steam aging test chamber
General descriptions:
Steam aging test chamber is used in electronic connector, semiconductor IC, transistors, diodes, LCD, chip resistance capacitance and components industry electronic components metal pin wetting resistance test before the aging accelerated life time test; Semiconductor and passive components, parts pin oxidation test. Microcomputer temperature controller, LED digital display, PID + SSR control, platinum resistance temperature sensor (PT - 100), resolution of 0.1 °C, automatic safety device.
Technical specifications:
Model No: YSA-3
Test basket size W×H×D(mm) 100×540×260 mm,3 sets
Exterior chamber size W×H×D(mm) 610×540×340mm
Temperature range Room temperature +10°C to 98°C
Performance Temperature control accuracy ±0.3°C
Temperature resolution ±0.1°C
Heat up time 45 minutes
Material Exterior chamber material Stainless steel plate+Powder Coated
Interior chamber material SUS#304 stainless steel plate
Insulation PU & Fiberglass wool
System Wind Circulation Sirocco fan
Heating system SUS#304 stainless steel high-speed heater
Controller Digital controller
Safety Devices Overheating circuit-breaker,compressor overload protection,control system overload protection,
humidifying system overheating protection,breakdown indicator light
Power supply AC 1 phase 220V, 3 phase 380V 6050Hz
Main features:
1. Inner chamebr is made of SUS#304 stainless steel, beautiful appearance.
2. Controlled by micro computer digital LED. Have time planning function, the max setting is 9990mins.
3. Have safety device including multiple over-temperature protection and power off when run out off water.
4. Testing high temperaturehigh humidity to spare parts,connector passive component and semiconductor
