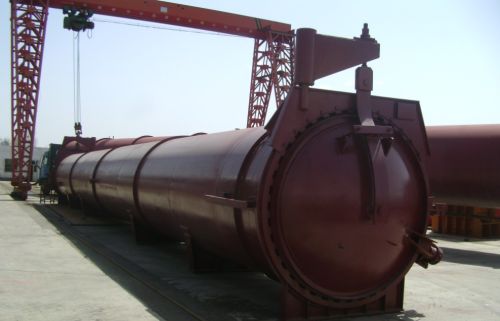

Steam Curing Autoclave, Brand Name : ZG

We are offering steam curing autoclave. Structure:
electric door autoclave’s structure have the same with general autoclave basically . The only difference is that the head side in the autoclave door’s head more than a booster organization, the organization assisted by the drive shaft, coupling, reducer and bracket, motor and frame and other components mounted on the door side of the kettle.
Autoclave door open and close, by the operator turns on the electric motor power, the motor power through reducer, drive shaft rotating autoclave door opener mechanism arm rotated to open or close the autoclave door. Autoclave door opening and closing, the operator should always observe the autoclave door pivot arm rotation is stable, if jamming phenomenon, should be turned off, remove the obstacles, to prevent burn out the motor.
Advantage:
1. Electric power door structure is simple, low operating, open light, and use of worm reducer, with self-locking effect. Therefore, the machine is simple, safe and reliable.
2. Longer service life.
3. To kettle cover - head butt, head - butt welding puzzle, kettle - kettle body butt welding flange ring to be a 100% inspection with 100% annealing.
4. Using automatic welding processes.
5. Advanced design, manufacture rigorous; pipeline operations, stable quality and high efficiency.
6. Products can also be segmented , adapt to user needs flexibility ; good overall package , short installation period, the investment costs low.
7. To provide you with perfect service and remote technical guidance.
