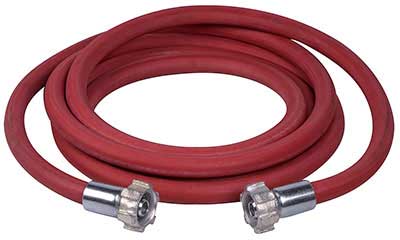

Steam Hose

Listing ID #2812812

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

By keeping records of the leading market demands, we have developed a secure payment procedure that offers a plenty of options for making transactions. We are backed by a well-structured and....

View More Details

Send Enquiry

Product Details

By keeping records of the leading market demands, we have developed a secure payment procedure that offers a plenty of options for making transactions. We are backed by a well-structured and capacious storage unit wherein we store the entire lot in a secured manner. Moreover, we ensure complete security of the stored items.

Specifications

Hose Construction - Inner Tube EPDM Rubber
Reinforcement - 1 or 2 Braids High Tensile Steel Wire / 1 or 2 Textile Braids
Cover - Synthetic Rubber - Abrasion, Ozone & Weather Resistant
Temp. Range - Up To 205° C Also Available with S.S. 304 or Copper wire Braiding
End Connection - Can Be Manufactured As Per Customer's Specifications

Details

HOSE SIZE
INCH	MM
3/8	10
1/2	12
5/8	16
3/4	19
1	25
1 1/4	32
1 1/2	38
2	51

IS-10655 : 1999 TYPE-I
MAX. W.P. BAR	MIN. B.P. BAR	MIN BEND MM
5	100	127
5	100	178
5	100	200
5	100	240
5	100	300
5	100	400
5	100	500
5	100	635

IS-10655 : 1999 TYPE-II
MAX. W.P. BAR	MIN. B.P. BAR	MIN BEND MM
10	100	127
10	100	178
10	100	200
10	100	240
10	100	300
10	100	400
10	100	500
10	100	635

IS-10655 : 1999 TYPE-III
MAX. W.P. BAR	MIN. B.P. BAR	MIN BEND MM
16	160	127
16	160	178
16	160	200
16	160	240
16	160	300
16	160	400
16	160	500
16	160	635

Company Details

We manufacture & exporters of SS Annular Corrugated Metallic Flexible Hoses With Stainless Steel Wire Braiding Hose size ranging from 1/4" NB ( DN 06 ) to 12" NB ( DN 300 ) in AISI 304, 316, 316L and 321 grades with any type of mounting fittings as per customer's specification. Our products conform to BS6501 Part I / ISO EN 10380 : 2012 and approved by GERMANISCHER LLOYDS.
We can supply the Hose Assembly with "CE" Marking as per Directive 2014/68/EU Certified by (0496) DNV-GL
We manufacture Flexible Hoses with SS Wire braided in type "B" flex & "C" flex.
We are exporting our product to various countries across the globe including Asia, Europe, Middle East, Far East, North America and South America.
