Sci-tech Steam Power Plants, Voltage : 220V for Education

Study of power generation using steam boiler and performance of steam generator is

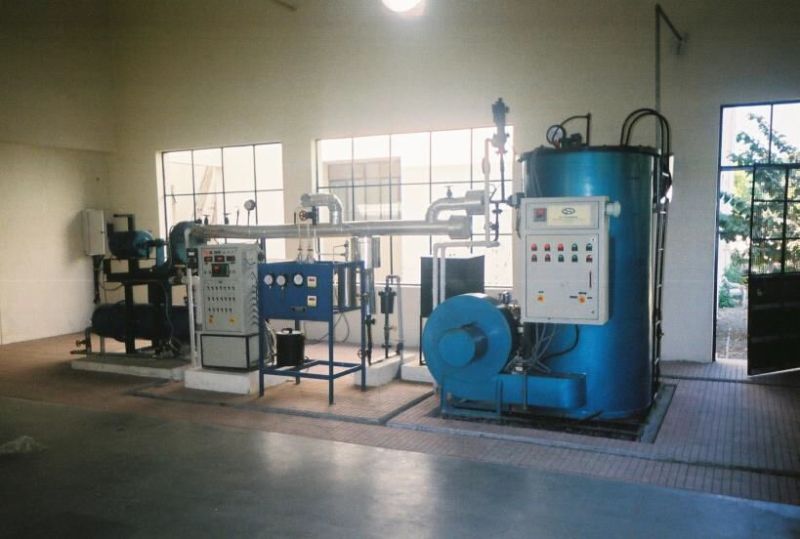

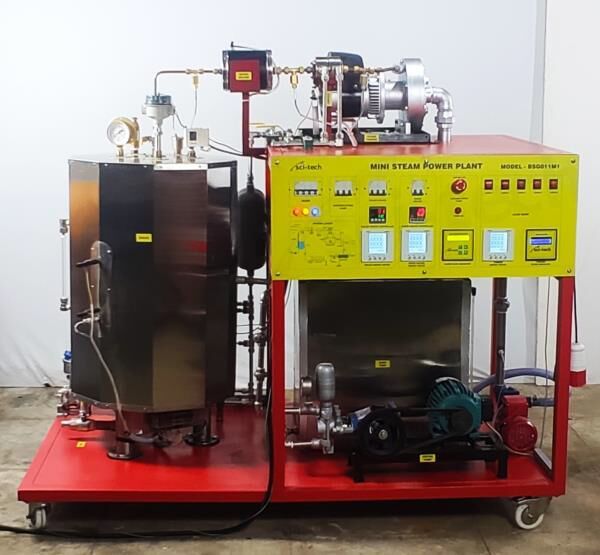

focus of this trainer. Sci-tech1.5KW Steam Power Plant Model BSG 002, is designed the system in such fashion that enables students to investigate all the parameters governing the utilization & maintenance of a typical power plant. The system uses a small sized boiler unit that runs on LDO/gas. The generated steam is then used to run the steam turbine which in turn, runs the coupled A.C. Generator to produce the electricity or loading can be done by using Alternator & Bulb bank. A loading arrangement is also given for load test. The unit is fitted with a colored mimic diagram that illustrates the constructional and operational features. The various aspects of boiler and turbine operation and maintenance can be studied. Instrumentation is provided to measure Temperatures and Pressures. Temperature pressure characteristics of boiler can also be plotted.

System Components

 Boiler 200 Kg/Hr at 11 bar

 Single-stage Steam turbine with Curtis wheel and hydraulic speed regulator: 1.5 KW @ 3000RPM

Fuel consumption: 12L/h

   Heat-up time: 8min

   Max. pressure: 13bar

   Heater: power 24 KW (In case of Electrically fired Steam Generator)

 Condenser Shell & Tube Type.

 Pressure measurements: 3 x 0 to 16 bar; 2 x 0 to 4 bar; 1 x -1 to 1 bar

 Chimney

 Orifice meter

 Control valve: Electric Solenoid Type

 Pump Centrifugal pump: 2~3 HP capacity & Piston Reciprocating Pump.

 Flow meter: Flow rate 0 to 160L/min (Cooling)

 Water Softener (Optional)

 Steam Calorimeter- Separating & Throttling calorimeter

 Temperature Indicator: 12 channel input: K Type thermocouple

 Fuel supply system: Volumetric Type capacity 50Liter

 K Type Thermocouple temp. Sensor

    Temperature measurements: 12 x 50⁰ to 400⁰C; 1 x 0 to 100⁰C

    Torque measurement: 0 to 10 Nm

 Digital Tachometer 0 -9999rpm.

 Voltmeter 0-500 V.

 Ammeter 0-10 Amp.

 Loading arrangement- Electrical Alternator

 Lamp Bank

 Control panel

 Cooling Tower (Optional)

 Computerized Data Acquisition System

Options

 Super Heater

 Blow Down Tank

Sci-Cal^RComputer Control Software & Interface
