SUPPORTING RAILS ON FLAT SURFACES

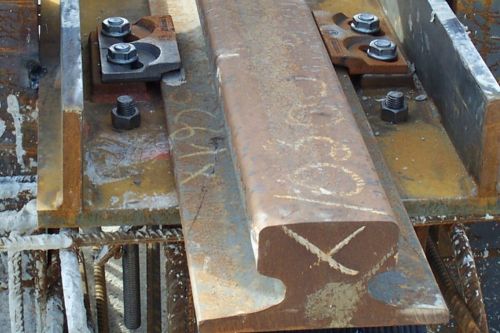

The main components of runway tracks, steel supports come in various types and shapes varying with the rail-mounted equipment: soleplates and chairplates (also known as baseplates or support plates), steel sleepers and steel columns. The primary function of a steel support consists in providing rails with a flat, smooth resting surface whilst allowing for the vertical alignment of a rail system.
Whilst anchor bolts secure the steel supports, specific levelling devices adjust the vertical level. Depending on the specific industry application and moving equipment (cranes or rolling stock), steel supports are installed on top of a layer of grout or concrete that fills the void between the steel support and the concrete foundation.
CUTTING-EDGE SOLUTIONS
GANTREX has pioneered the development of the Adjustable Chair for cases when post-installation vertical and horizontal settlementsmovements of the foundation are anticipated (as with container stacking yards). This genuine Gantrex ®system is equipped with the latest RailLok™ technology and allows for simple and rapid initial installation in compliance with the strictest rail tolerances including ISO 12488-1, AIST Technical Report 13, and CMAA, as well as for post-installation vertical and horizontal adjustments to restore rail elevation and horizontal positioning to these same tolerances in the event of foundation settlement or movements.
This system is particularly suitable for stacker-reclaimer cranes and cranes with automated positioning or operating systems, such as Automated Stacking Cranes.
