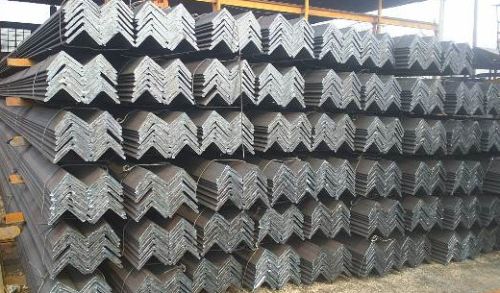

Steel Angle

We are offering steel angle.
Standard: alsl, astm, bs, din, gb, jib
place of origin: china
technique: hot rolled
width: no requirement
grade: q195-q420 series
surface treatment: galvanized
length: no requirement
specifications
galvanized steel angle
dimensions: 20-200mm
grade: q195-q420 series
standard: aisi, astm, bs, gb
material: q195-q235
size:
sizes
width*width*thickness (mm)
weight
(kg/m)
sizes
width*width*thickness (mm)
weight
(kg/m)
25*25*3
1.12
80*80*7
8.48
30*30*3
1.36
80*80*8
9.55
30*30*4
1.78
90*90*6
8.25
30*30*5
2.16
90*90*7
9.59
38*38*3
1.72
90*90*8
10.90
38*38*4
2.26
90*90*9
12.20
40*40*3
1.83
90*90*10
13.30
40*40*4
2.41
100*100*6
9.22
40*40*5
2.95
100*100*7
10.70
50*50*3
2.33
100*100*8
12.10
50*50*4
3.06
100*100*10
14.90
50*50*5
3.77
120*120*8
14.70
50*50*6
4.43
120*120*10
18.20
60*60*5
4.55
120*120*12
21.50
60*60*6
5.41
130*130*9
17.90
65*65*5
5.00
130*130*10
19.70
65*65*6
5.91
130*130*12
23.40
65*65*8
7.66
150*150*10
22.90
70*70*5
5.37
150*150*12
27.30
70*70*6
6.38
150*150*15
33.60
70*70*7
7.35
200*200*15
45.30
75*75*5
5.76
200*200*20
59.70
75*75*6
6.85
200*200*24
71.10
75*75*7
7.94
250*250*25
93.70
75*75*8
8.92
250*250*28
104.00
75*75*9
9.96
250*250*35
128.0
othersiwe,we also can manufacture you all the size you requested. Your satisfaction is our greatest pursuit.
welcome to enquire !
