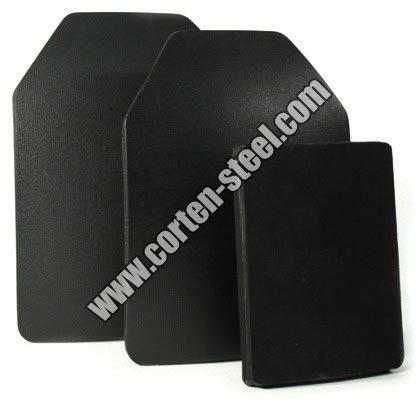

Contact SupplierWe are the noted Exporter, Importer & Supplier of durable Body Armour Plates. Our Ramor Product Of Ruukki Steel is widely in demand by customers who are seeking extreme protection and safety performance for their end-products. Ramor plate that we offer has outstanding ballistic properties along with high hardness and optimum strength. Ramor is especially developed for such applications where blast protection or high ballistic resistance is required. Some of the application areas are doors, window frames, walls, bank counters and vaults, money exchange offices, cars, security vans, secured containers, shooting gallery devices and military vehicles and equipment.
Applications
Heavy plates Thickness mm | Upper tolerance mm | Sheets Thickness mm | Upper tolerance, width-wise mm | |
---|---|---|---|---|
-1200 | 1201 – 1500 | |||
6.00 – 6.99 | 0.74 | 2.50 – 3.00 | 0.3 | 0.32 |
7.00 – 7.99 | 0.76 | 3.01 – 4.00 | 0.32 | 0.36 |
8.00 – 9.99 | 0.8 | 4.01 – 5.00 | 0.36 | 0.4 |
10.00 – 11.99 | 0.9 | 5.01 – 6.00 | 0.4 | 0.42 |
12.00 – 14.99 | 1 | 6.01 – 6.50 | 0.44 | 0.44 |
15.00 – 19.99 | 1.1 | |||
20.00 – 24.99 | 1.2 | |||
25.00 – 29.99 | 1.3 |
C | Si | Mn | P | S | Cr | Ni | Mo | B | |
---|---|---|---|---|---|---|---|---|---|
Ramor 400 | 0.24 | 0.7 | 1.5 | 0.02 | 0.015 | 1 | 1 | 0.7 | 0.005 |
Ramor 500 | 0.32 | 0.7 | 1.5 | 0.02 | 0.015 | 1 | 2 | 0.7 | 0.005 |
Test |
According to standard |
Test frequency |
---|---|---|
Tensile test |
EN 10002-1 |
Typical values or according to agreement. |
Brinell hardness test |
EN ISO 6506-1 |
Each heat treatment individually |
Charpy impact test |
EN 10045-1 |
Typical values or according to agreement. |
Ballistic protection |
PM2000/EN 1522 Stanag 4569 |
Typical values according to approval tests. |
