Steel Body Heavy Duty Screw Jack

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

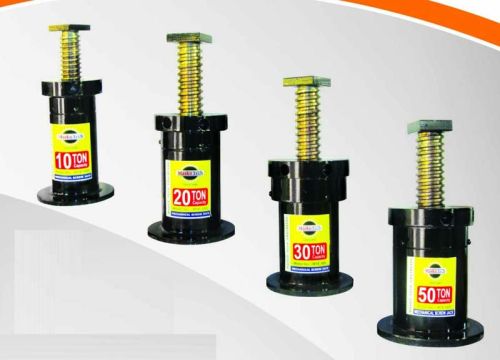

We are offering a wide array of Steel Body Heavy Duty Screw Jack that is used for different types of lifting operations. Manufactured using high-grade steel, our Steel Body Heavy Duty Screw Jack is accredited for features like corrosion resistance, high strength, durability, etc. Obtain from us, bulk quantities of Steel Body Heavy Duty Screw Jack at the most competitive rates.

View More Details

Send Enquiry

Technical Specifications

Model No.	Cap.	Closed Height	Mech. Lift	Total height	Screw dia.	Base dia.	Weight
MTE	(Tons)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg.)
5S	5	185	100	285	35	120	03/05/04
10S	10	240	130	370	39	130	6
15S	15	240	130	370	44	130	06/05/07
20S	20	240	130	370	47	165	10
30S	30	250	150	400	49	165	12
40S	40	300	200	500	58	230	16-18
50S	50	280	140	420	64	230	22-23
60S	60	29	145	435	70	230	27-29
75S	75	290	145	435	75	230	30-33
90S	90	290	145	435	80	240	35-38
100S	100	290	145	435	90	240	40-42
150S	150	290	145	435	95	240	43-45
200S	200	290	145	435	100	240	46-48
