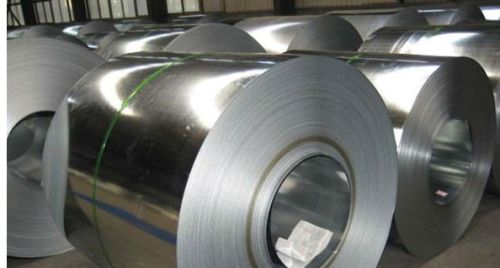

Steel coil, Brand Name : shanri

we are offering Steel Coil.
Quick Details
Standard: JIS, G3302 1998, ASTM A653M/A924M 2004 Grade: SGCC, DX51D, Q195 Thickness: 0.2mm-3.5mm
Place of Origin: Shanghai China (Mainland) Brand Name: shanri Model Number: Steel Coil
Type: Steel Coil Technique: Hot rolled-cold rolled Surface Treatment: Galvanized
Application: Corrugated steel; roofing, basic material for PPGI,etc. Width: 600mm-1500mm Length: Any length
Product Name: Steel Coil Spangle: Regular spangle, minimized spangle and zero spangle Chemical Surface Treatment: Chromate, oil
Packaging & Delivering: Standard export seaworthy packing Features: Paintability, weldability and anti-corrosion Edge: Mill edge, cut edge
Competitive Advantages: Best quality and reasonable price
Packaging & Delivery
Packaging Detail: Standard export seaworthy packing (or by the customer's request)
Delivery Detail: 3-4Weeks
Specifications
Steel Coil:
1.Capacity: about 15000 ton per month for coil
2. Coil weight: 2-10MT
Process of Steel Coils :
Pay off reel-double cut shear-welder-notcher-entry accumulator-pre cleaning section-furnace-hot bridle-zinc pot-air knife-after cooler-water quench-dryer- skin pass mill-dryer-tension leveler-dryer-chemical coater-chemical oven-cooler-exit accumulator-oiler-exit shear-tension reel.
Features of Steel Coils :
1) Hot Dip Galvanized Steel Coil/Sheet is manufactured to have a long durability, strong corrosion resistance and shiny surface.
2) Hot Dip Galvanized steel features excellent forming properties, paintability, weldability, and is suitable for fabrication by forming, pressing and bending.
Specifications of Steel Coils :
1) Capacity: about 15000 tons per month for the steel sheet and coil product
2) Grade: SGCC, DX51D, Q195, all according to the customer's request
3) Standard: JIS G3302 1998, ASTM A653M/A924M 2004, all according to the customer's request
4) Thickness: from 0.14mm to 0.2mm, all available
5) Width: from 600mm to 1500mm, all available
6) Coil ID: 510mm-610mm
7) Coil OD: 1950mm Max.
8) Coil weight: from 2-10MT, according to the customer's request
9) Zinc coating weight: 60g/m2-275g/m2, double side
10) Spangle: regular spangle, minimized spangle and zero spangle
11) Surface treatment: chromate, oil, anti-finger print
12) Edge: mill edge, cut edge
13) Min trial order 10 ton each thickness, 1x20' per delivery
Product Steel Coil
Grade SGCC, DX51D, Q195
Standard JIS G3302 1998, ASTM A653M/A924M 2004
Thickness 0.14mm-0.2mm
Width 600mm-1500mm
Coil ID 510mm-610mm
Coil OD 1950mm max.
Coil weight 2-10MT
Zinc coating weight 60g/m2-275g/m2
Spangle regular spangle, minimized spangle and zero spangle
Surface treatment chromate, oil, anti-finger print
Edge mill edge, cut edge
MOQ 10 tons
Applications Steel Coils :
1) Domestic applications
2) Building applications (e.g. wall elements, roofing applications...)
3) Automotive applications
4) Lighting fixtures
5) Drums
6) Various kinds of section applications
7) Profiled sheets
Surface finish Pattern Application
Regular spangle Standard spangles with flower pattern General uses
Minimized spanlge Minimized spangles than regular General painting applications
Zero spangle Extremely minimized spangles Special painting applications
Product qualities Applications Example of uses
CQ - Commercial Quality steel structural applications steel drums
SQ - Structural Quality steel application that need more draw ablity steel mesh
LFQ - Lock Forming Quality / washing machines
DQ - Drawing Quality / microwaves
DDQ - Deep Drawing Quality / air-conditioning ducts
