Steel Construction Floor Metal Decking Roll Forming Machine

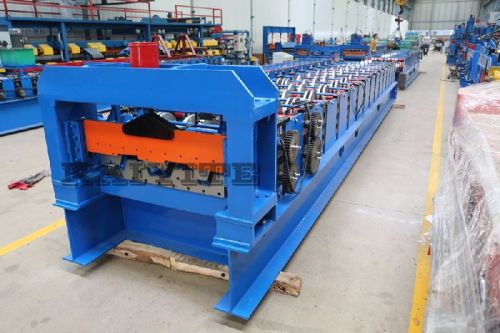

Steel Construction Floor Metal Decking Roll Forming Machine The raw material of the steel construction floor metal decking roll forming machine is galvanized steel . Its thickness is 0.8-1.2mm . Most of the width of raw material is 1250mm , but we can also design it as your request .Our machine is of high quality with advantage of stable and stronger. Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand Minimal maintenance high efficiency reliable working  low energy consumption Durable Technical You can check our machine over all. Not only beautiful in the surface but also good quality. Technical parameters: Material Specification  :  colored steel sheet , galvanized steel sheet. Thickness of coil sheet :0.8-1.2mm Forming speed : 25 meter min Hydraulic pressure :58MPA Hydraulic station power : 4kw Main motor power : 4kw Voltage : 380V 3phases 50Hz or at buyers requirement Controlling system : PLC In order to help you know our machine much better. The following is the detailed pictures of the machine. Hydraulic cutting system   Forming rollers   Specification: 45# steel, CNC Lathes, heat treated  Feature: hard chrome plating, 0.05 mm Manual uncoiler It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 ton, and it is capable for most of the coils.
