Steel Core Conveyor Belt

We are offering steel core conveyor belt.

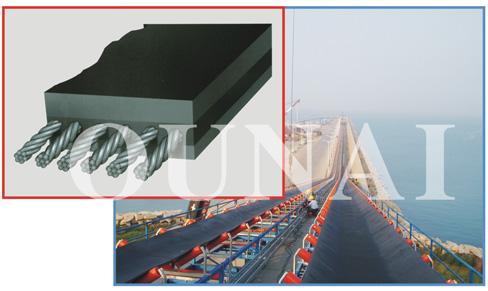

Construction
it adopts open type steel cable, and has the advantage of higher glue bond strength than conventional steel cable. Mainly including such specifications as 67-wsc619-wsc619w-wsc.
Characteristics
high tensile strength, good impact resistance, long service life, short operation elongation, good troughability, good flexure resistance, suitable for long distance, large shipping distance and high speed transportation of materials. This product consists of cord rubber, steel cable, coating and side rubber.
Application
widely used in material conveying in the fields as of coal, mine, port, metallurgy, electric power and chemical engineering.
Varieties
ordinary type, fire-resistant and flame-resistant type according to the performance of rubber cover.
Instructions
the steel cord conveyor belt is designated as follows in sequence: belt length, belt width, model and specification , and the cover performance of the steel cord belt. If there is a change in thickness of rubber cover, it needs to be indicated.
Calculation method for m2 of steel cord conveyor belt (m2):
for example: steel cord flame-resistant conveyor belt 500m sts1000-1200-4.06.0+6
square meters = 1.2m (4.0mm+6.0mm+6.0mm)1.5mm 500m=6400m2
