Steel CZ Purlin Roll Forming Line

steel CZ purlin roll forming line
New Model CZ profile chaneable Steel 80-300mm C Z Purlin Roll Forming Machine Decoiler System:
Usage: Passive uncoil pulled by roll forming system, support the steel coil and uncoil it in a turntable way.
No :
Decoiler System Main Parameter :
1
Loading capacity
1-3T
2
Uncoiling width
300-600mm
3
Inner diameter
450-550mm

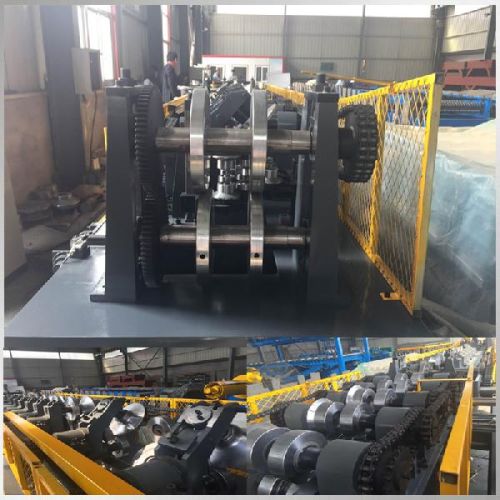

New Model CZ profile chaneable Steel 80-300mm C Z Purlin Roll Forming Machine Roll Forming System:
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission, roller surfaces polishing, hard plating , heat treatment and galvanizational treatment.
No :
Roll Forming System Main Parameter :
1
Length of the main part
about 3000*1000*400-8800*1800*1500
2
Weight of main part
