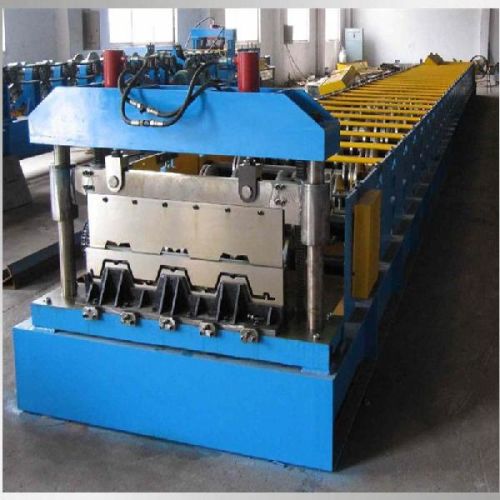

Steel Floor Plate Roll Forming Machine

steel floor plate roll forming machine
steel floor plate roll forming machine
We are specialized in designing and building various steel floor plate decking roll forming machines,such as close-type steel floor deck roll forming machine,3-waves steel deck floor roll forming machine,2-waves with ribs steel floor deck roll forming machine etc. In modern time,people prefers to use steel instead of stone or cement for construction projects,such as the steel floor decks, because it is more convenient to fill the concrete into the steel floor deckings than to use the stone floor.
Technical Data for Main Parts on decking floor steel sheets roll forming machine:
Uncoiler: Manual Uncoiler
Thickness of Material: 0.7mm-1.2mm
Effective Width:600-900mm
Coil Weight: 5 Tons
Coil OD:1500mm
Coil ID:508--610mm
Feeding Guide OF STEEL FLOOR DECKING ROLL FORMING MACHINE:
2 Rollers to guide the material into the machine
Both ends of the flat roll adopt bearing structure.
Roll Forming Machine (STEEL DECK FLOOR ROLL FORMING MACHINE)
Roller Stations: 28-36 stations
Diameter of Shaft: 70mm
Material of Shaft: 45# steel.
Material of roller: 45#steel with electroplating treatment after quenching treatment.
Forming speed: 8-12mmin
Siding Plate: 36 [H" Steel (Thickness 18mm).
