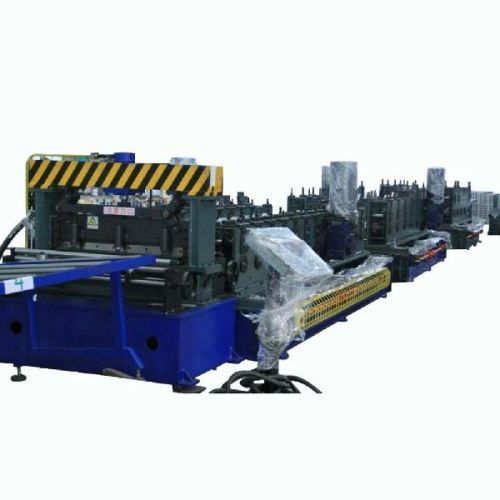

Steel Ladder Cable Tray Purlin Roll Forming Machine

Ladder Type Cable Tray Forming Machine is designed according to the relevant information at home and abroad. Cable Ladder Roll Forming Machine has the advantages of light weight, low cost, unique modeling, convenient installation, heat dissipation, good ventilation and so on. Cable Ladder Roll Forming Machine is suitable for laying large diameter cables and high and low voltage power cables. The Ladder Type Cable Tray Making Machine is a duplex and high performance production line for manufacture C section profile with allotted holes for supporting electric wiring in commercial and industrial construction. Usually it made from middle gauge steel thickness from 0.6-2.0mm.The perforated cable tray roll forming machine successfully integrated hydraulic punching device or high speed press machine for radiation holes on cable tray. Also the telescope shaft is available to rapid size changeover without toll change. Pre-cutting device equipped for cut off finished products. 1. Steel Ladder Cable Tray Machine Finished Products   2. The Chart of Process Flow De-coiler--- Leveling--- Hydraulic Punching--- Roll forming--- Hydraulic Cutting- Output Table   3. The equipment including Cable Tray Forming Machine 1 set Electrical control system 1 set Hydraulic system 1 set 5 ton Manual de-coiler 1 set Leveling machine 1 set Servo feeding machine 1 set 160 ton Press machine 1 set Cutting device 1 set 4. Main technical specification and details Description Product
