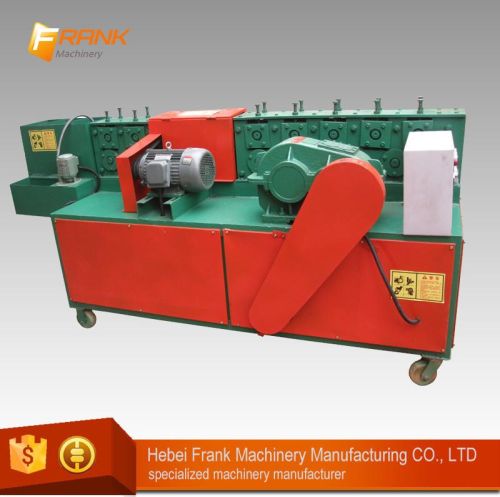

Steel Pipe Straightening Machine

We are offering steel pipe straightening machine.
Application:
mainly used in the construction, straighten the crooked steel pip , at the same time clean up the ash and rust on surface of the pip, and paint. It is a very good equipment for lease standing, shipyard, steel pipe factory and so on.
Product features:
1.the machine adopts machinery transmission, reasonable structural design, stable performance, easy operation.
2.the machine is multi-function. Straightening, derusting, paint multiple, can be done at same time. Also it can stretched the steel pipe with no damage.
3. High speed, and strong power. It can straighten φ46-49mm steel pipe.
4. The machine run smooth, low noise. It have four moving wheels at the bottom, more convenient to move.
5, high productivity. It can straighten 2 pieces 6 meters steel pipes per minute , and about 30 tons a day’s work.
6, by adjusting screw, adjust the space between straightening roller for the different size pip.(it has some request to the worker`s operation skill.)
technical parameters:
model vdc power using range straighten efficiency straightening speed weight dimensions
ay48-2a 380v 3kw+3kw+0.2kw φ46-49 ≤3° 6mmin &
12 mmin 600kg 2300*950*1100
ay48-2b 380v 3kw+3kw+3kw+0.2kw φ46-49 ≤3° 6mmin & 12mmin 700kg 2900*950*1100
