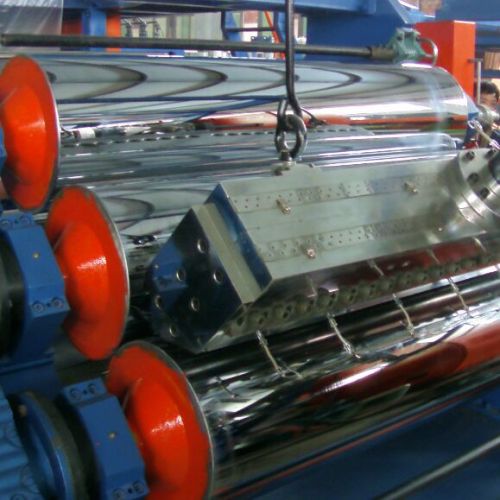

Plastic Steel Roll PET Calender Roller

Product application
it is used for calendering of rubber or plastics, fabric fractioning and coating, sheeting and composite of rubber or plastics.
rubber roller
made of chilled cast iron of vanadium and titanium alloy.
Roll face is hard and anti-wear.
For heating up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface
roll surface: groundhardchrome plated min. 120 micron and super –finish polished
to rmax.: 0.05-0.06 micron
hardness: suitable steel surface hardened up to 3mm depth (56 hrc)
end to end temp. Difference: 1 deg.c
roller diameter360mm
roller working length 1120mm
roller ratio1:1:1
middle roller linear speed3-26.39 rmin
adjusting nip0-10
min calender thickness of product 0.2 mm
calendering product width 920mm
motor power45 kw
machine weight about 14 ton
type:rubber calender
place of origin:zhejiang, china (mainland)
brand name:bbt
voltage:customer's request
power(w):customer's request
weight:about 14 ton
certification:sgs ce iso
roller:cold hard alloy steel
gearbox:hardened teeth gearbox
bush:roller bearing bush
