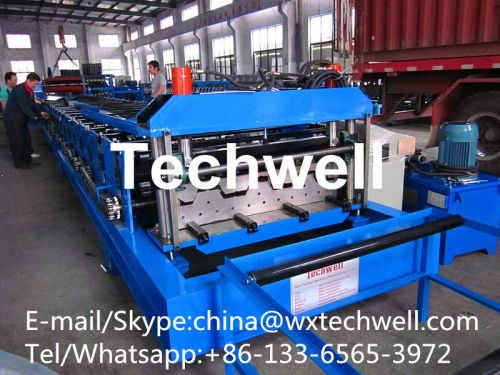

Steel Structure Floor Deck Roll Forming Machine

Steel Structure Floor Deck Roll Forming Machine for making steel structure floor decking panel
A). Main Components:
Decoiler -------------------------------------------- 1 Unit
Feeding -------------------------------------------- 1 Unit
Main roll forming machine ------------------------- 1 Unit
Hydraulic cutting device --------------------------- 1 Unit
Hydraulic Station ----------------------------------- 1 Unit
PLC computer control ------------------------------ 1 Unit
Output table ---------------------------------------- 1 Unit
B). Main Specification:
Material Spec: Galvanized steel sheet
Thickness of Coil Sheet: 0.8 --1.2 mm
Main Motor Power: 18.5kw
Forming Speed: 10--12mmin
Hydraulic Station Power: 4kw
Quantity of Stands: About 24 groups
Hydraulic Pressure: 10~12Mpa
Controlling System: PLC
Index Error of Length: 10m±1.5mm
Total Weight: About 1800kg
Voltage: 380V 3 phase 50Hz or at buyers requirement
Applications:
Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...
