Steel Wire Braided Hose

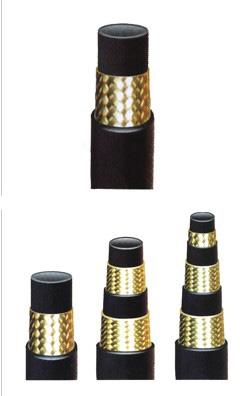

his hose consists of an inner tube of oil synthetic rubber, one/two/three/four/six wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
Hose range suitable to carry hydraulic fluids such as glycol, mineral oils, fuels, lubricants, emulsion, hydrocarbons etc.
Hose size I�D(mm) Reinforcement Diameter(mm) O.D Work pressure Proof pressure Burst pressure Min.Bend Radius(mm) weight
MPA Psi Mpa Psi MPa Psi
1-5-21 4.5-5.5 9.5±0.6 14±0.8 21 3043 31.5 4564 63 9129 90 0.25
1-6-20 5.5-6.5 11.7±0.6 16±0.8 20 2898 30 4347 60 8694 100 0.34
1-8-17.5 7.5-8.5 13.7±0.6 18±0.8 17.5 2536 26.25 3804 52.5 7607 115 0.41
1-10-16 10±0.5 15.7±0.6 20±0.8 16 2318 24 3478 48 6955 130 0.47
1-13-14 13±0.5 19.7±0.6 24±1.0 14 2028 21 3043 42 6086 180 0.70
1-16-12 16±0.5 22.7±0.8 27±1.0 12 1739 18 2608 36 5216 205 0.84
1-19-10 19±0.5 25.7±0.8 30±1.0 10 1449 15 2174 30 4347 240 0.95
1-22-9 22±0.5 28.7±0.8 33±1.0 9 1304 13.5 1956 27 3912 280 1.09
1-25-8 25±0.5 32.2±0.8 37±1.0 8 1159 12 1739 24 3478 300 1.38
1-32-6 32±0.5 39.2±0.8 44±1.2 6 869 9 1304 18 2608 420 1.80
1-38-5 38±0.7 45.2±0.8 50±1.2 5 725 7.5 1087 15 2174 500 1.92
1-51-4 51±1.0 58.2±0.8 63±1.5 4 579 6 8694 12 1739 630 2.20
1-64-2.5 64±1.0 71±0.8 75±1.5 2.5 362 3.75 543 7.5 1087 770 2.60
1-76-1.5 76±1.0 84±0.8 88±1.5 1.5 217 2.25 326 4.5 652 930 3.10
1-89-1 89±1.0 99±0.8 103±1.5 1 144.9 1.5 217 3 435 1100 4.40
1-102-1 102±1.0 111±0.8 115±1.5 0.8 116 1.2 174 2.4 348 1250 6.00
2-5-60 5±0.5 11.2±0.6 15±0.8 60 8694 90 13041 150 21735 90 0.40
2-6-20 6±0.5 13.5±0.6 18±0.8 60 8694 90 13041 150 21735 100 0.45
2-8-50 8±0.5 15.5±0.6 20±0.8 50 7245 75 10868 125 18113 115 0.62
2-10-40 10±0.5 17.5±0.6 22±0.8 40 5796 60 8694 100 14490 130 0.71
2-10-53 10±0.5 16.5±0.6 24±0.8 53 7680 79.5 11520 132 19127 130 0.71
2-13-30 13±0.5 21.5±0.8 26±1.0 30 4347 45 6521 90 13041 180 0.93
2-16-21 16±0.5 24.5±0.8 29±1.0 21 3043 31.5 4564 63 9129 205 1.00
2-16-34 16±0.5 24.5±0.8 30±1.0 34 4926 51 7390 85 12317 205 1.23
2-19-18 19±0.5 27.5±0.8 32±1.0 18 2608 27 3912 54 7825 240 1.23
2-19-34 19±0.5 27.5±0.8 32±1.0 34 4926 51 7390 85 12317 240 1.38
2-22-16 22±0.5 30.5±0.8 35±1.0 16 2318 24 3478 48 6955 280 1.54
2-25-14 25±0.5 34±0.8 39±1.0 14 2029 21 3043 42 6086 300 1.54
2-32-11 32±0.5 41±0.8 40±1.2 11 1594 16.5 2391 33 4782 420 1.82
2-38-10 38±0.7 47±0.8 52±1.2 10 1449 15 2174 30 4347 500 2.44
2-51-8 51±1 60±0.8 65±1.5 8 1159 12 1789 24 3478 630 3.10
2-64-5 64±1 74±1 79±1.5 5 725 7.5 1087 15 2174 790 3.40
2-76-4 76±1 86±1 92±1.5 4 580 6 895 12 1789 920 4.10
2-89-3 89±1 99±1 106±1.5 3.5 507 5.25 761 10.5 1521 1060 5.73
2-102-3 102±1 112±1 118±1.5 3 435 4.5 652 9 1304 1200 6.16
2-127-2 127±1 137±1 143±1.5 2 290 3 448 6 869 1450 7.32
3-5-72 5±0.5 13.2±0.6 17±0.8 72 10433 108 15649 180 26082 120 0.50
3-6-68 6±0.5 15.0±0.6 19±1.0 68 9853 102 14780 170 24633 140 0.56
3-8-54 8±0.5 17.5±0.6 22±1.0 54 7825 81 11737 120 17388 160 0.83
3-10-44 10±0.5 19.5±0.6 24±1.0 44 6376 66 9563 110 15939 180 0.95
3-13-32 13±0.5 23.5±0.8 28±1.2 32 4637 48 6955 96 13910 240 1.22
3-16-23 16±0.5 26.5±0.8 31±1.2 23 3333 34.5 4999 69 9998 300 1.30
3-19-20 19±0.5 29.5±0.8 34±1.2 20 2898 30 4347 60 8694 330 1.62
3-22-18 22±0.5 32.5±0.8 31±1.2 18 2608 27 3912 54 7825 380 1.81
3-25-16 25±0.5 36.0±0.8 41±1.0 16 2318 24 3478 48 6955 400 1.99
3-32-13 32±0.5 43.0±0.8 48±1.2 13 1884 19.5 2826 39 5651 450 2.46
3-38-12 38±0.7 49.0±0.8 54±1.5 12 1789 18 2608 36 5216 500 3.08
3-51-10 51±1 62.0±0.8 67±1.5 10 1449 15 2174 30 4347 630 3.80
3-64-6 64±1 75.0±0.8 80±1.5 6 895 9 1304 18 2608 790 4.30
3-76-5 76±1 88±0.8 92±1.5 5 725 7.5 1087 15 2174 960 5.10
3-89-4 89±1 101.0±0.8 107±1.5 4 580 6 895 12 1789 1100 6.80
3-102-4 102±1 114.0±0.8 120±1.5 3.5 507 5.25 761 10.5 1521 1280 7.34
3-127-3 127±1 139±1 145±1.5 3 435 4.5 652 9 1304 1560 8.4
