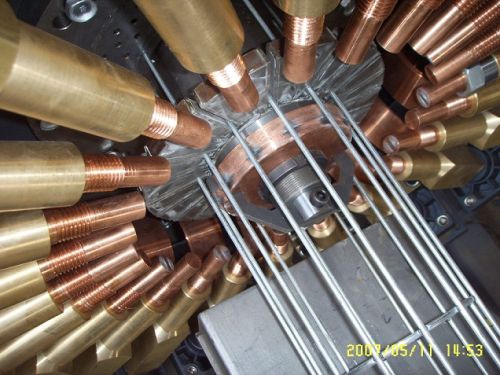

Steel Wire Cage Machine, Brand Name : ZGTEK

We offer steel wire cage machine.
Ring space is programmable and bag cage is pulled by step motor; ring space precision is 0.1mm; pulling speed is 0.4m/s; linear rail bed is available.
Input voltage: 380V(2-phase) or specified by customer
Power frequency: 50/60Hz
Power capacity: 80KVA
Instant power in sync mode: 36KVA
Instant power in async(time-sharing) mode: 18KVA
Transformers: 2sets
Air pressure: 0.6-0.8MPa
Air flow: 300L/min
Cooling method: natural cooling
Weight: about 1000KG
Features
Rails (standard 7500mm, up to 9000mm) and material shelf equipped and connected to the welding unit. The front end of the rail is adjustment-free. Good linearity can be achieved for wire cages
Equipped with auto feeding unit, no restrictions on ring space
Four air tanks, short air route inside the machine ensures quick response of the cylinder
25mm front plate resulted from one-time machining, firmly secure that the welding cylinders are on the same plane and perpendicular to the axes, thus the linearity of the cage can be ensured
Stroke-adjustable cylinders increase welding speed, pre-pressing only takes 0.08s
Controlled by micro-computing unit
Time-sharing power-on transformer reduces the burden on local electricity gridS
