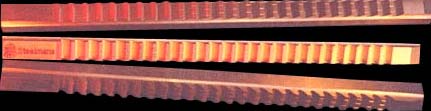

Steelmans Standard Keyway Broaches

Brand NameSteelmans
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Push and Pull types Involute and Straight Spline, Serration broach, Surface , Keyway, Special Profile Broaches, Keyway, Hexa. Broaches and Standard Broach Sets....Gear Hobs , Gear Cutters ..Vertical and Horizontal Broaching Machines , Broach sharpening machines....

View More Details

Send Enquiry

Steelmans American Standard Keyway Broaches

STM No.	Broach Size	Tolerance	Tooth Pitch	No.of Teeth	Shims Req'd	Broach Dim.
201	1/16-A	.0625-.0635	03/16/15	18	0	1/8 X 5
210	3/32-A	.0938-.0948	03/16/15	18	0	1/8 X 5
219	1/8-A	.1252-.1262	03/16/15	18	1	1/8 X 5
0.23	3/32-B	.0937-.0947	09/01/32	16	0	3/16 X 7
237	1/B-B	.1252-.1262	09/01/32	16	1	3/16 X 7
246	5/32-B	.1564-.1574	09/01/32	16	1	3/16 X 7
255	3/16-B	.1877-.1887	09/01/32	16	1	3/16 X 7
264	3/16-C	.1877-.1887	03/08/15	22	1	3/8 X 12
273	1/4-C	.2502-.2512	03/08/15	22	1	3/8 X 12
282	5/16-C	.3127-.3137	03/08/15	22	2	3/8 X 12
291	3/8-C	.3755-.3765	03/08/15	22	2	3/8 X 12
300	5/16-D	.3127-.3137	05/08/15	17	2	9/16 X 14
309	3/8-D	.3755-.3765	05/08/15	17	2	9/16 X 14
318	7/16-D	.4380-.4390	05/08/15	17	3	9/16 X 14
327	1/2-D	.5006-.5016	05/08/15	17	3	9/16 X 14
345	5/8-E	.6260-.6270	05/08/15	20	4	3/4 X 16
354	3/4-E	.7515-.7525	05/08/15	20	5	3/4 X 16
363	7/8-F	.8765-.8775	05/08/15	26	6	1 X 21
372	1-F	1.0015-1.0025	05/08/15	26	7	1 X 21

Steelmans Extra Shims For Keyway Broaches

STM No.	Broach Size	STM No.	Broach Size
381	1/8-A	471	--
390	1/8-B	480	1/2-D
399	5/32-B	489	5/8-E
408	3/16-B	498	3/4-E
417	3/16-C	507	7/8-F
426	1/4-C	516	1-F
435	5/16-C	525	01/01/08
444	3/8-C	534	01/01/04
453	5/16-D	543	01/03/08
462	3/8-D	552	01/01/02
