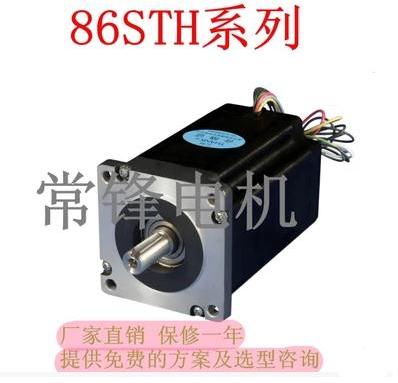

Stepper Motor 2-phase 86series (nema 23) 12N.M

We are offering Motor length: 150mm(no include shaft)
Holding Torque: 12.5N.m
Shafe Length: 32 or 37mm or customized
Step angle: 1.80.9deg
Step angle accuracy: 5%(full step, no load)
Temperature Rise: 80℃ Max(rate current, 2 phases on)
Ambient Temperature Rang: -20℃----- +50℃
Insulation Resistance:100MΩ Min. 500VDC
Dielectric Strength: 750VAC 50Hz 1mA 1 Minute
Lead wire: 468 or Cable
Motor Weight:5.5Kg
