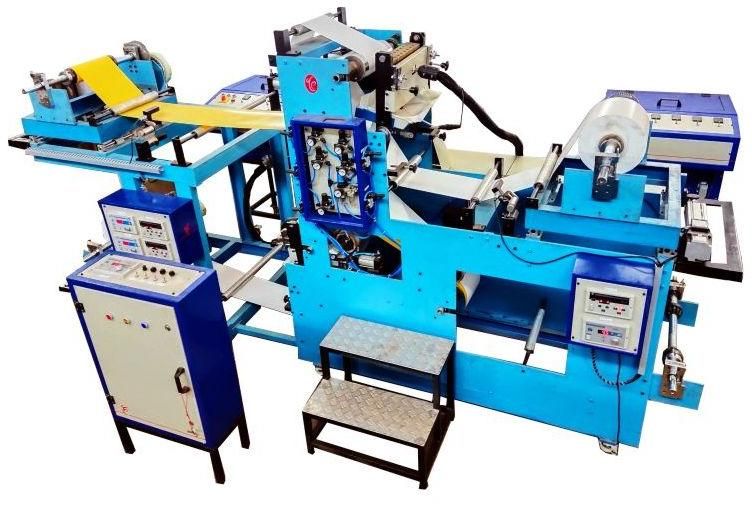

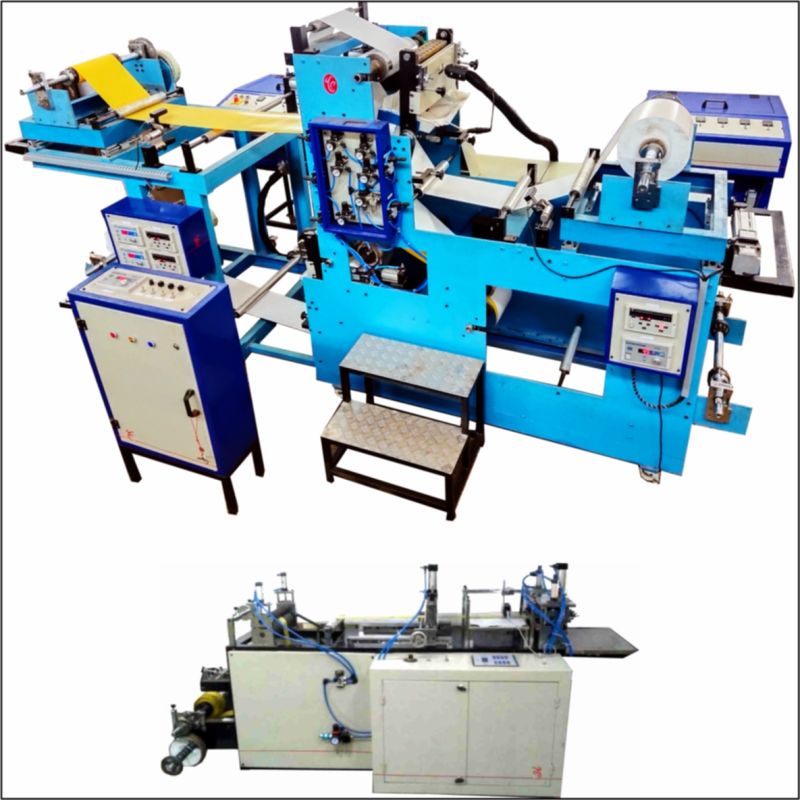

Sticky Trap Making Machine with Hot Melt Coating on for Both Sides

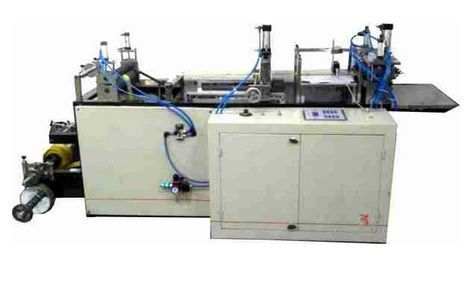

A 300mm width Hot Melt Coating Machine with both side coating at same time and Sheet cutting machine

Hot Melt Coater Specification:

This machine will make rolls of 325mm (Max.) width & max 600mm dia. with 30 gsm hot melt coating. Process

1. Silicon paper of 300mm will be coated with HM 30 gsm.
2. Lamination (transfer of HM on PVC) of Si paper & 0.270mm PVC film.
3. Winding of Si paper & PP/PVC roll.

Machine Type: Die coating

Max. Size of coating: 300mm, GSM: 15 to 65 Max. Speed of coating : Speed 10 mpm @30gsm

M/c specifications:

1. Unwind 1:

To hold 310 mm max. width material. (Si Paper)450 mm Dia. Max.

76 MM core ID.

Powder Brake

Web Guide

1. Unwind 2:

To hold 300 mm width material. (PVC of 0.27mm)

450 mm Dia. Max.

76 MM core ID.

Powder Brake

Web Guide

1. Coating Station: Die coating.( 2 Sets)

Accurate Temp. Control.

All silicon rolls dynamic balanced.

Back up roller Pneumatically operated

1. Lamination Nip:

Dynamic balanced Metal roll & Silicone roll

Operation & pressure Pneumatic

Drive to the nip

1. Rewind : for PVC + Si Paper

To hold 310mm max. width material.

600 mm Dia. Max.

76 MM core ID.

Tapper tension controlled winding.

AC Drive for controlled winding.

1. Permelter: (2 Sets)

Tank capacity 20 Lit.

Melting Capacity 8 Lit/hr

liquid tank capacity 5 Lit.

Pump Capacity 0.4 Lit/Min

Accurate Temp. Control.

Accurate flow control

1. Hot melt Hose (2 Sets)

To Supply 0.4 Kgs/hr

Length 2 m

Accurate Temp. Control.

8.      DIMENTIONS: 3 m X 2 m X 2 m

            Total Electrical Load : Motors 5 HP, Heaters 7.5 KW
